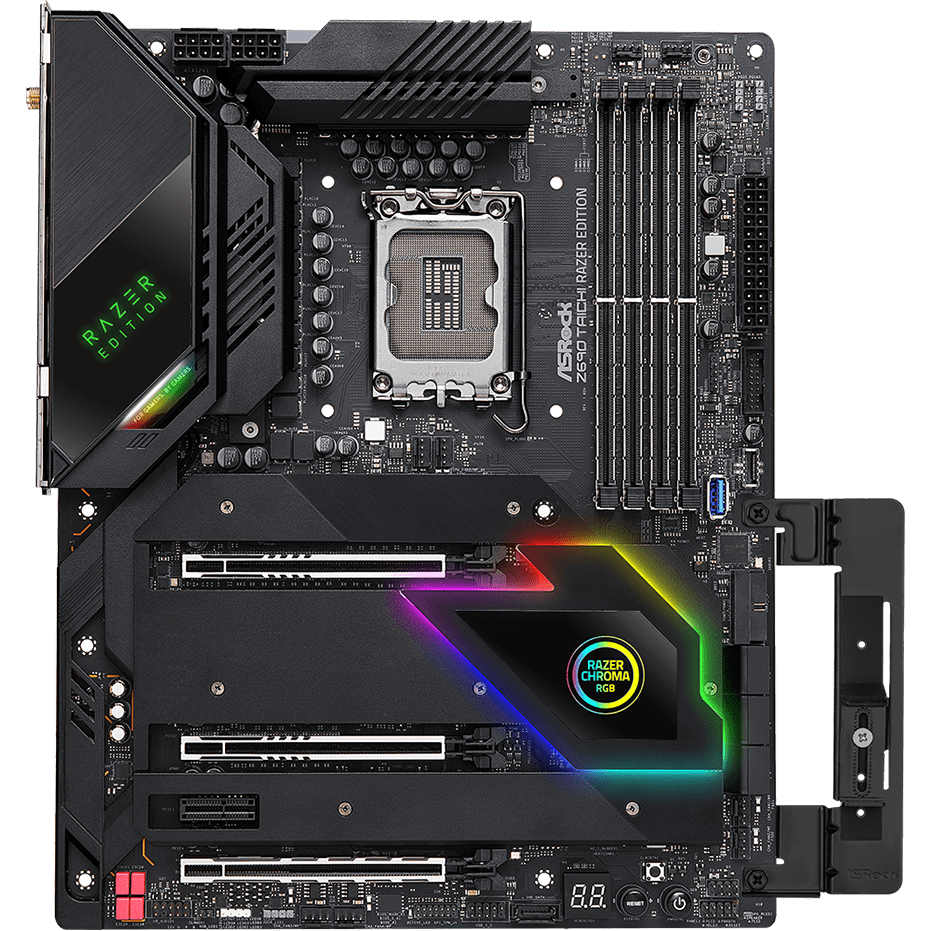

Pamatplate ASRock Z690 Taichi Razer Edition

Name: Pamatplate ASRock Z690 Taichi Razer Edition
Brand: ASRock
SKU: 450955
Price: 42400.00 EUR
Availability: InStock

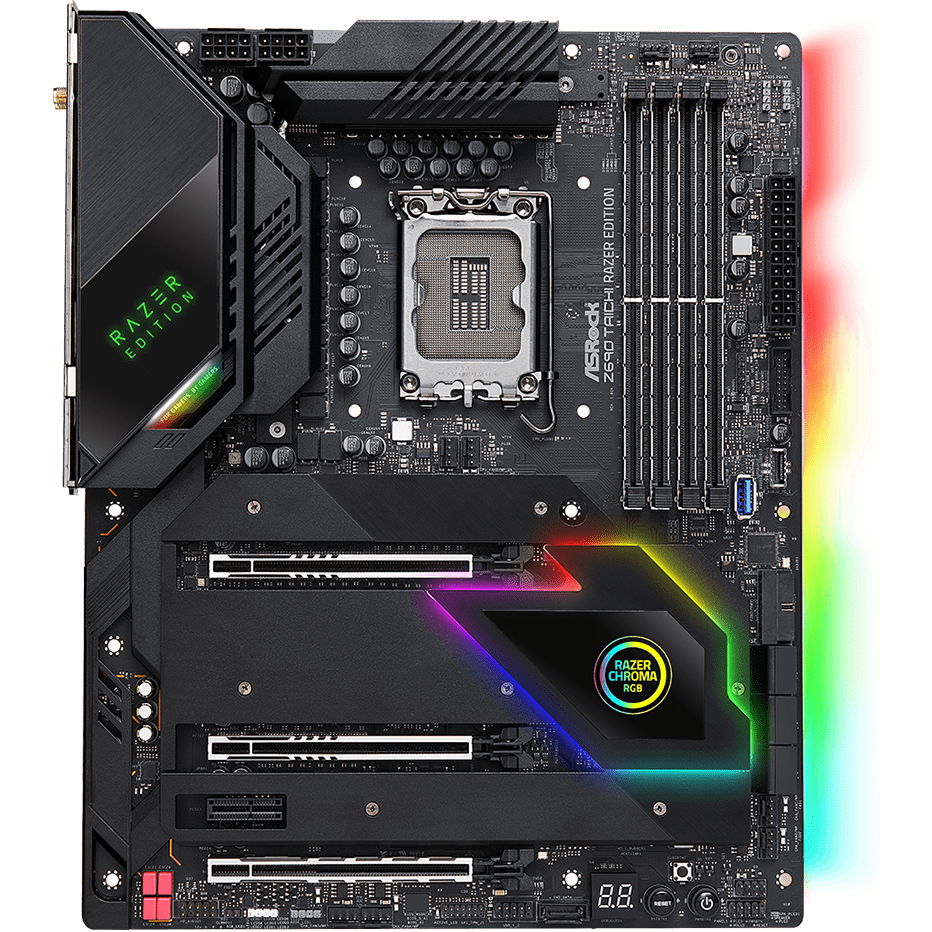

Pamatplate ASRock Z690 Taichi Razer Edition - foto 2

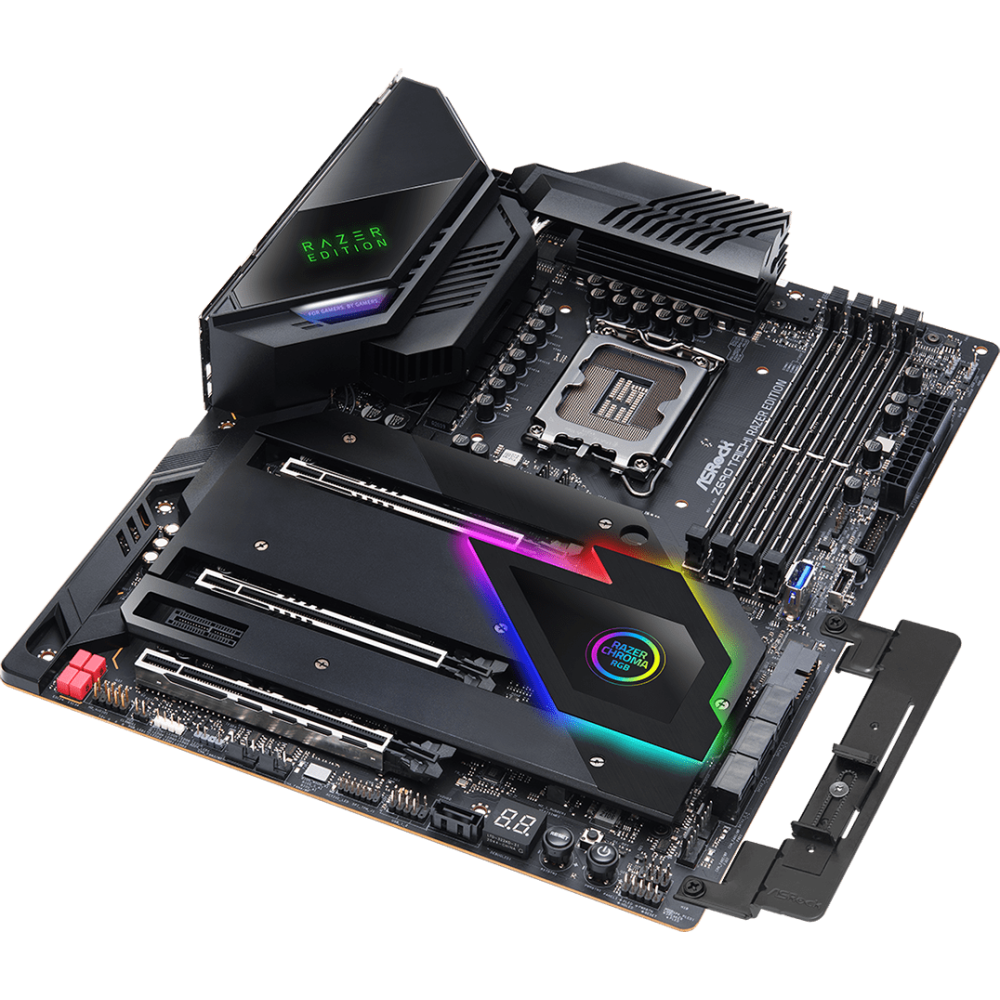

Pamatplate ASRock Z690 Taichi Razer Edition - foto 3

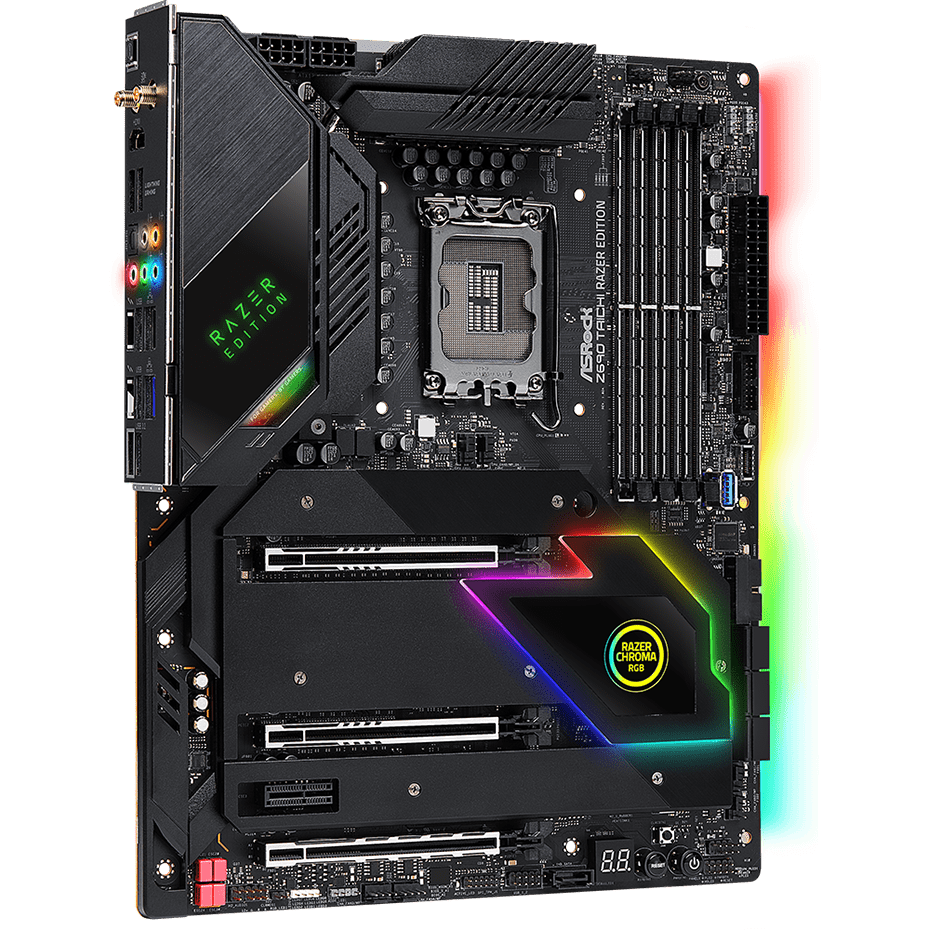

Pamatplate ASRock Z690 Taichi Razer Edition - foto 4

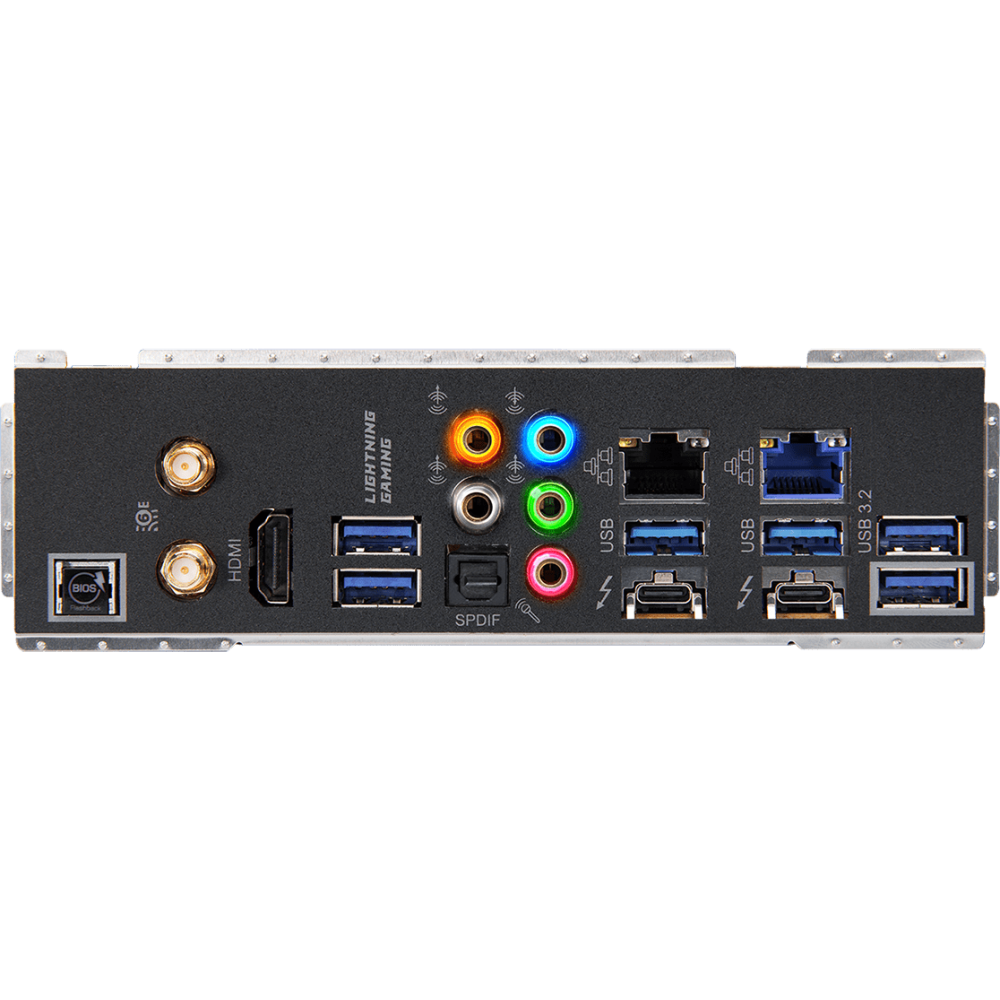

Pamatplate ASRock Z690 Taichi Razer Edition - foto 5

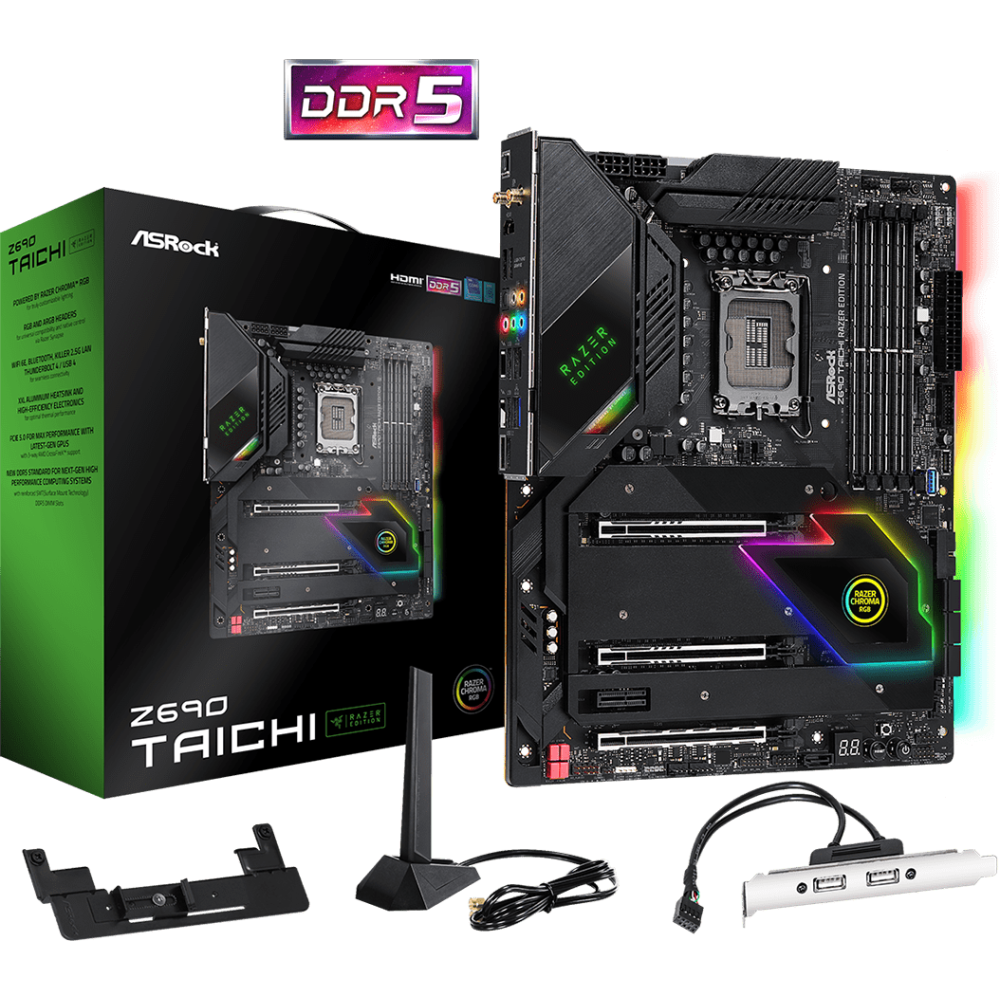

Pamatplate ASRock Z690 Taichi Razer Edition - foto 6

ID: 450955

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel Z690
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 2 x PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E x1, 4 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth
Ligzdas aizmugurējā panelī: 4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, 2 x Thunderbolt 4/USB-C, 2 x RJ-45, S/PDIF (optiskais)
Apgaismojums: Jā
Formfaktors: ATX

Pilnas specifikācijas

42.400,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar InBank

Pieejams līdz 10.000,⁰⁰ €

Reprezentatīvais aprēķins

Iespēja iegādāties uz kredīta ar Lateko līzings

Pieejams līdz 3.000,⁰⁰ €

Reprezentatīvais aprēķins

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

Z690 Taichi Razer Edition

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel Z690

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

4 x USB 3.2 Gen1, 2 x USB 3.2 Gen2, HDMI, 2 x Thunderbolt 4/USB-C, 2 x RJ-45, S/PDIF (optiskais)

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

7 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC1220

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCI-E 5.0 x16, PCI-E 4.0 x16, PCI-E x1, 4 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2280 (PCIe Gen4x4);
- Key M, 2242/2260/2280 (PCIe Gen4x4);
- Key M, 2230/2242/2260/2280 (SATA3 & PCIe Gen3x2);
- Key E, support WiFi/BT module PCIe WiFi type 2230 and Intel CNVi (Built-in WiFi/BT).

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

- 2 x PCIe 5.0 x16 (PCIE1 and PCIE2), x16 or x8/x8 support; - 1 x PCIe 4.0 x16 (PCIE4), in x4 mode.

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps), 2.5 Gigabit Ethernet (100/1000/2500 Mbps), Wi-Fi, Bluetooth

Tīkla kontrolieris ........................................................................................................................................................................................................

Intel I219V/Killer E3100G

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

2 x 8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, 2 x USB 3.2 Gen1

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Apgaismojums ........................................................................................................................................................................................................

jā

Formfaktors ........................................................................................................................................................................................................

ATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com
