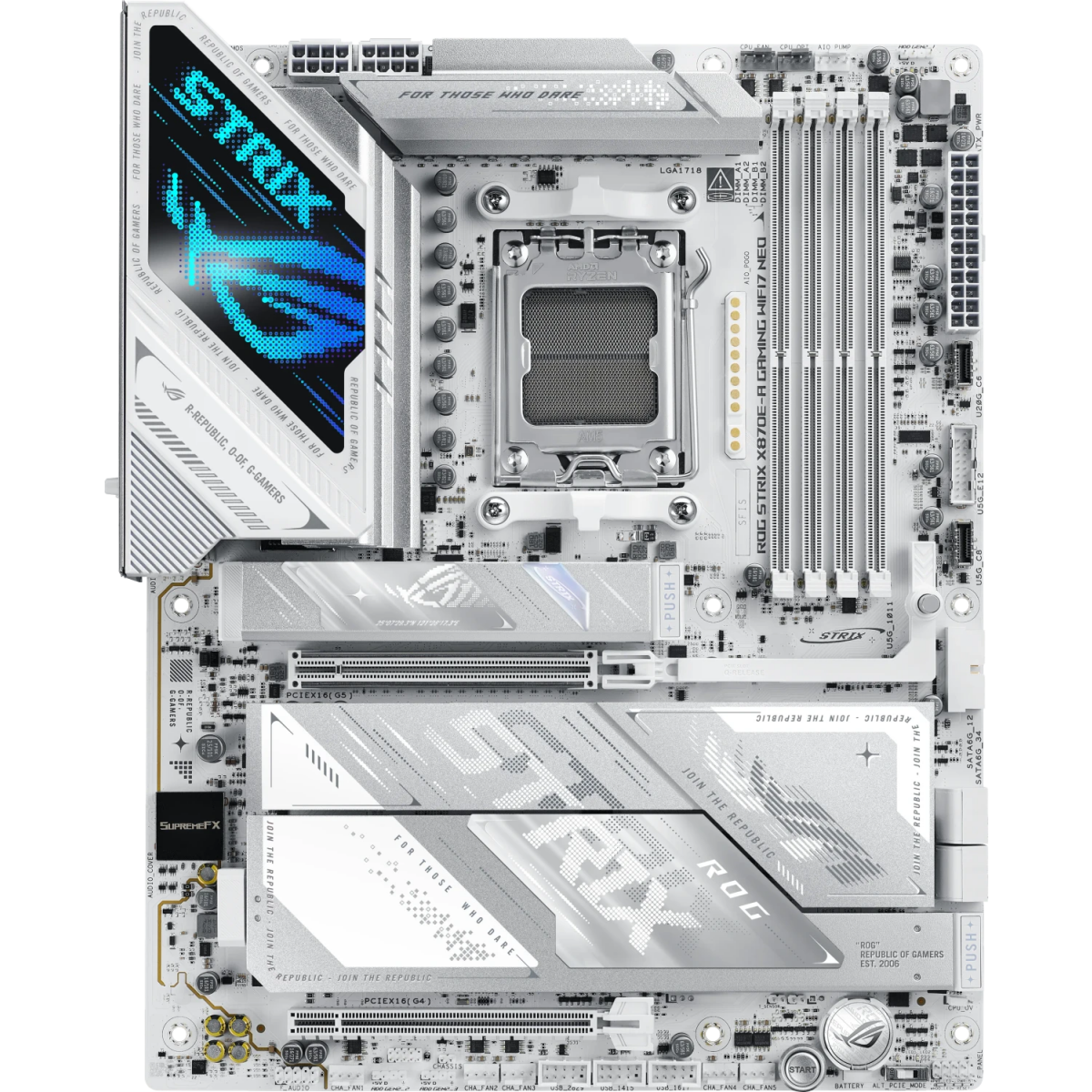

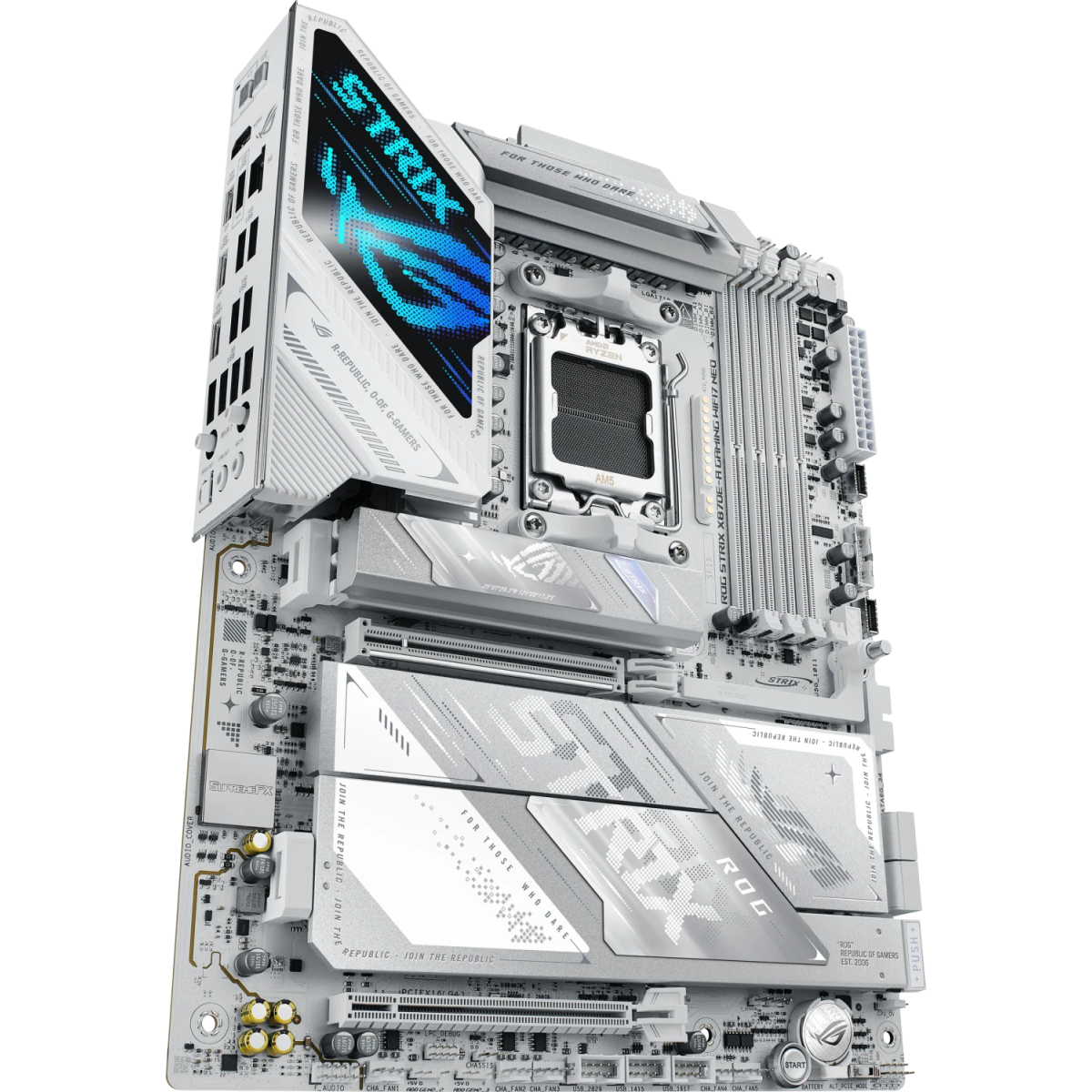

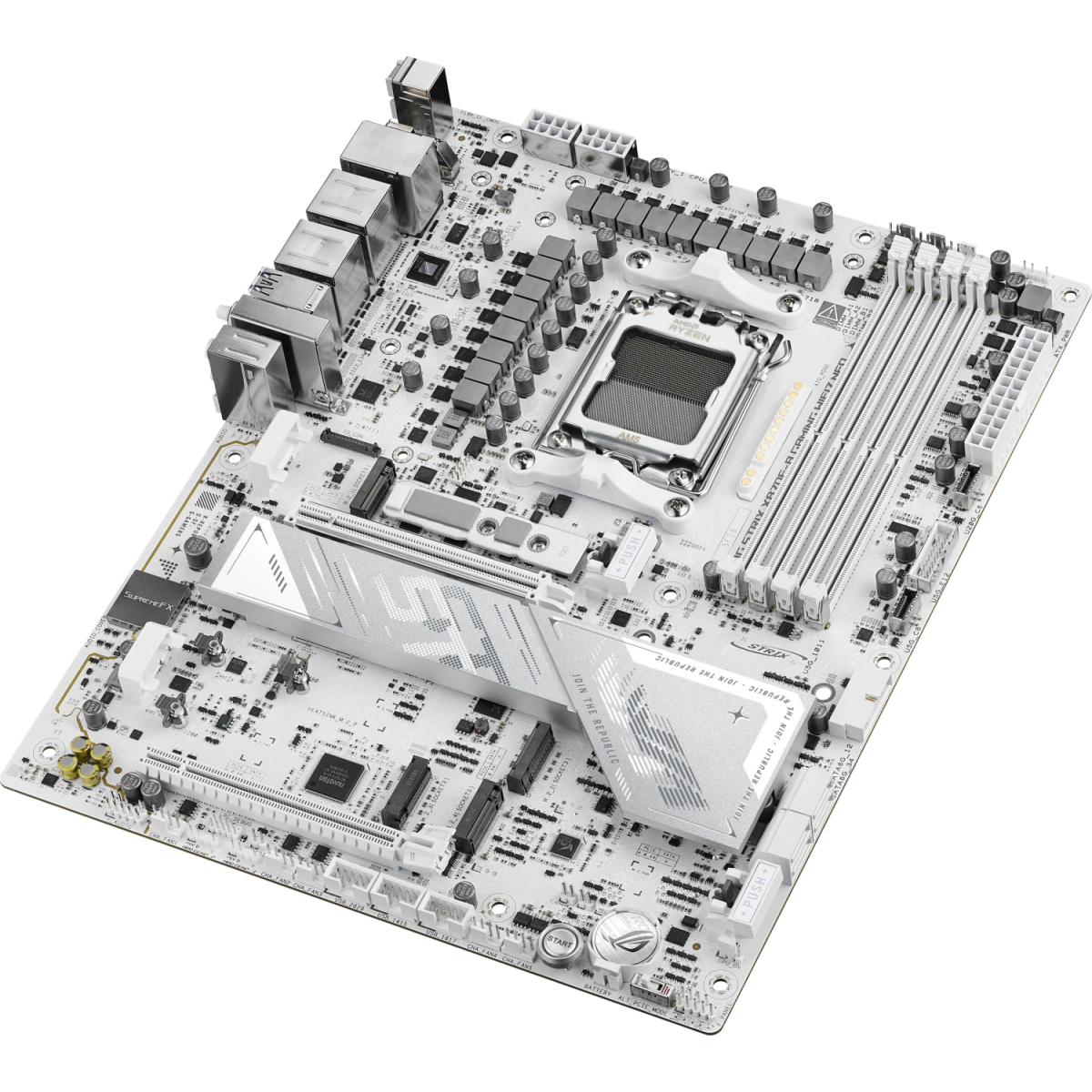

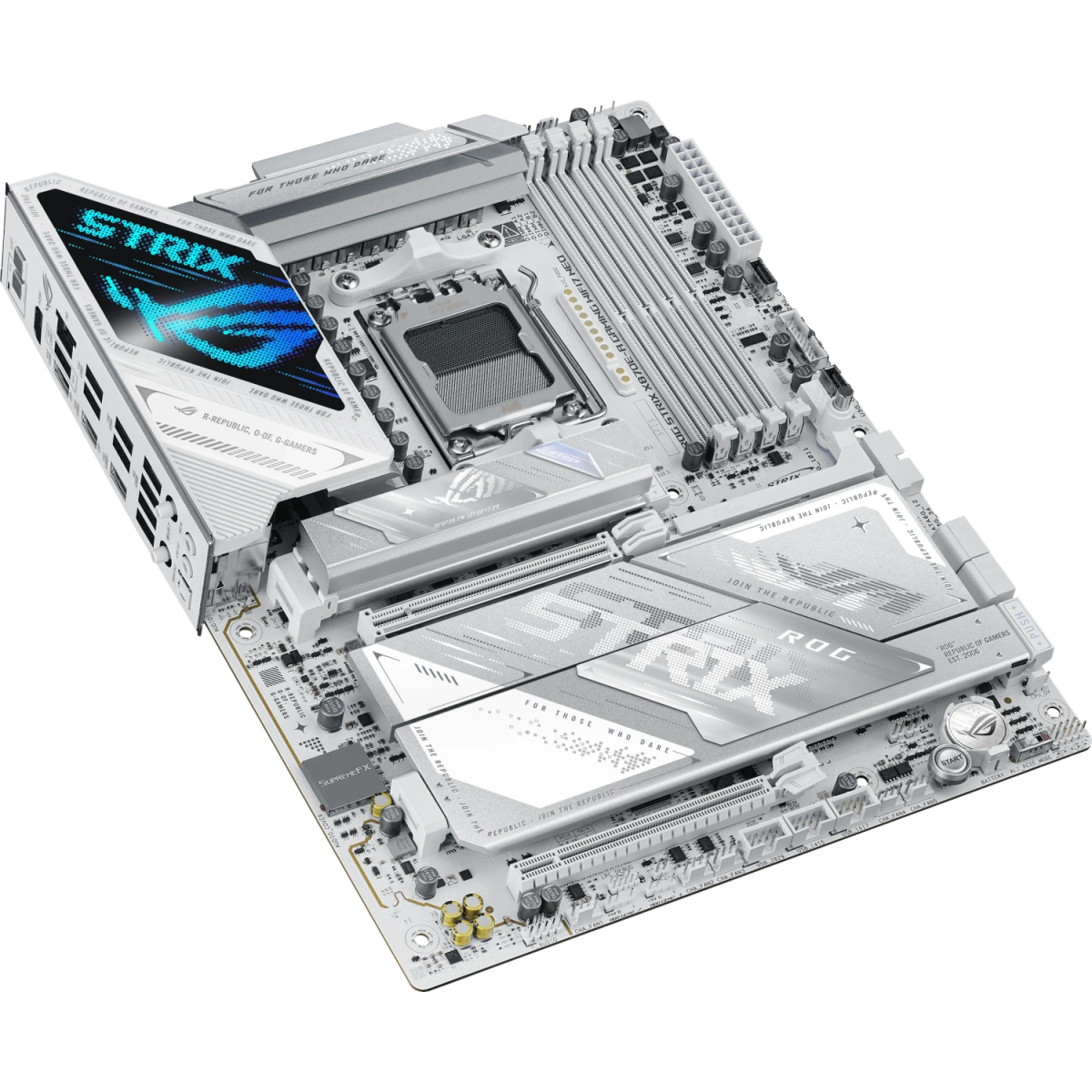

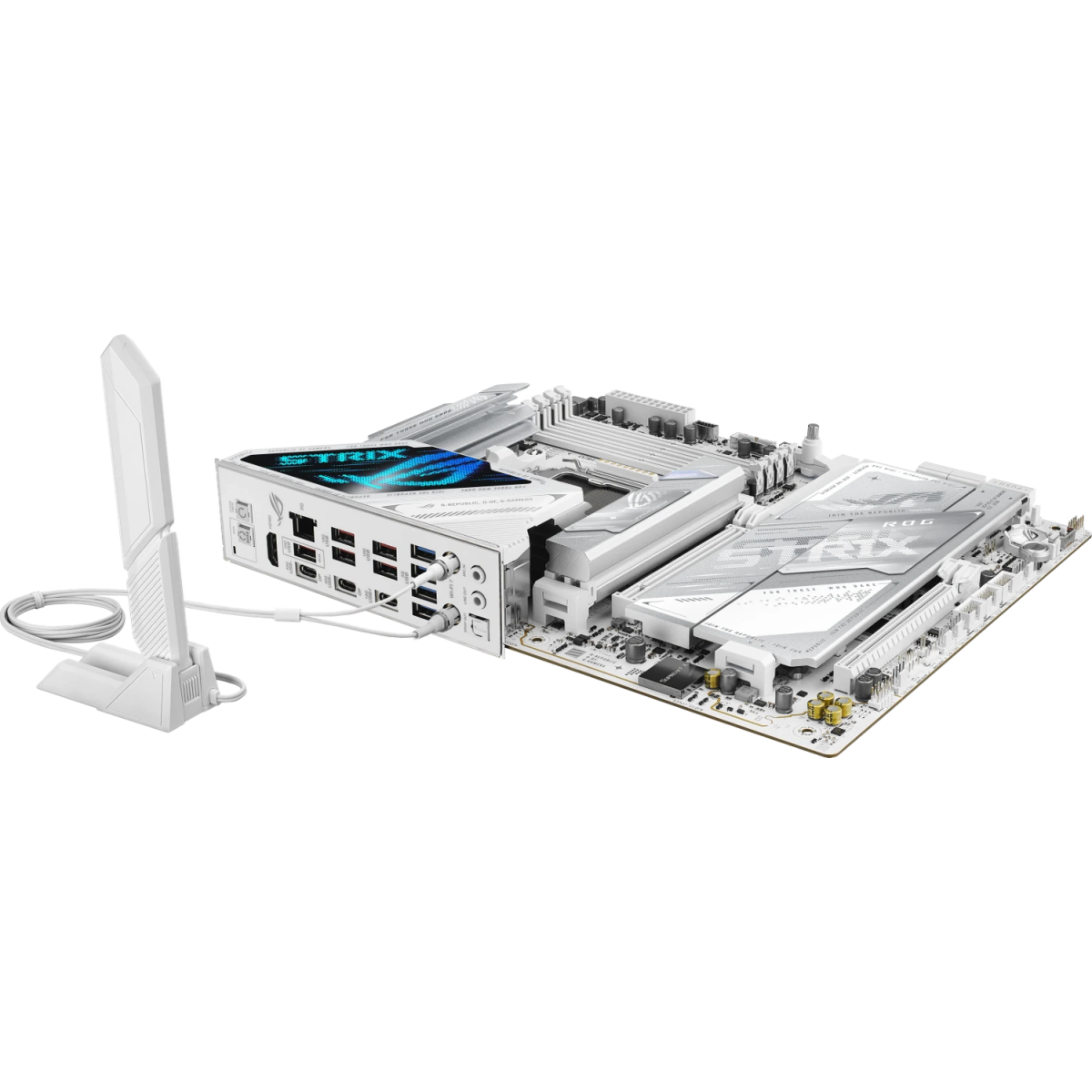

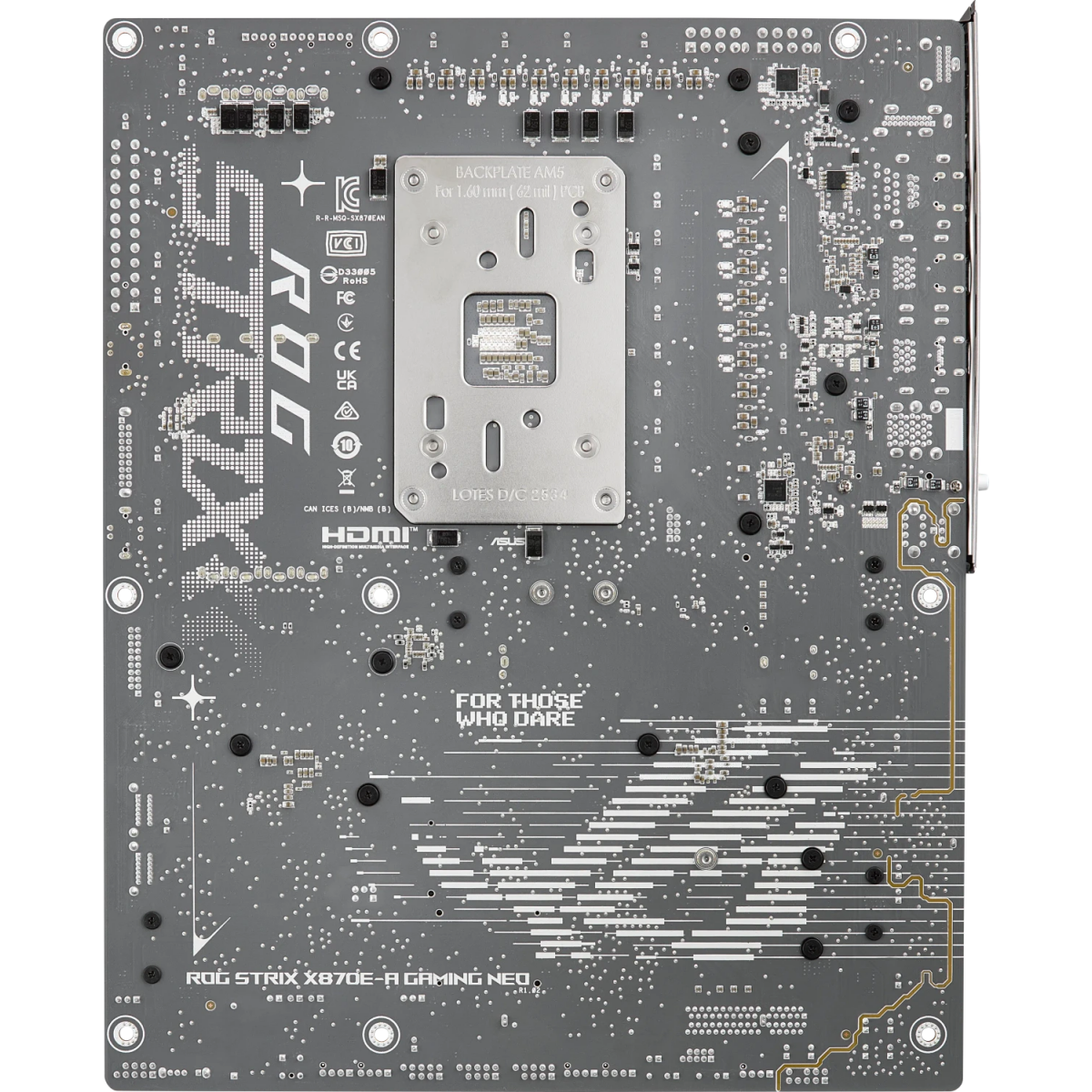

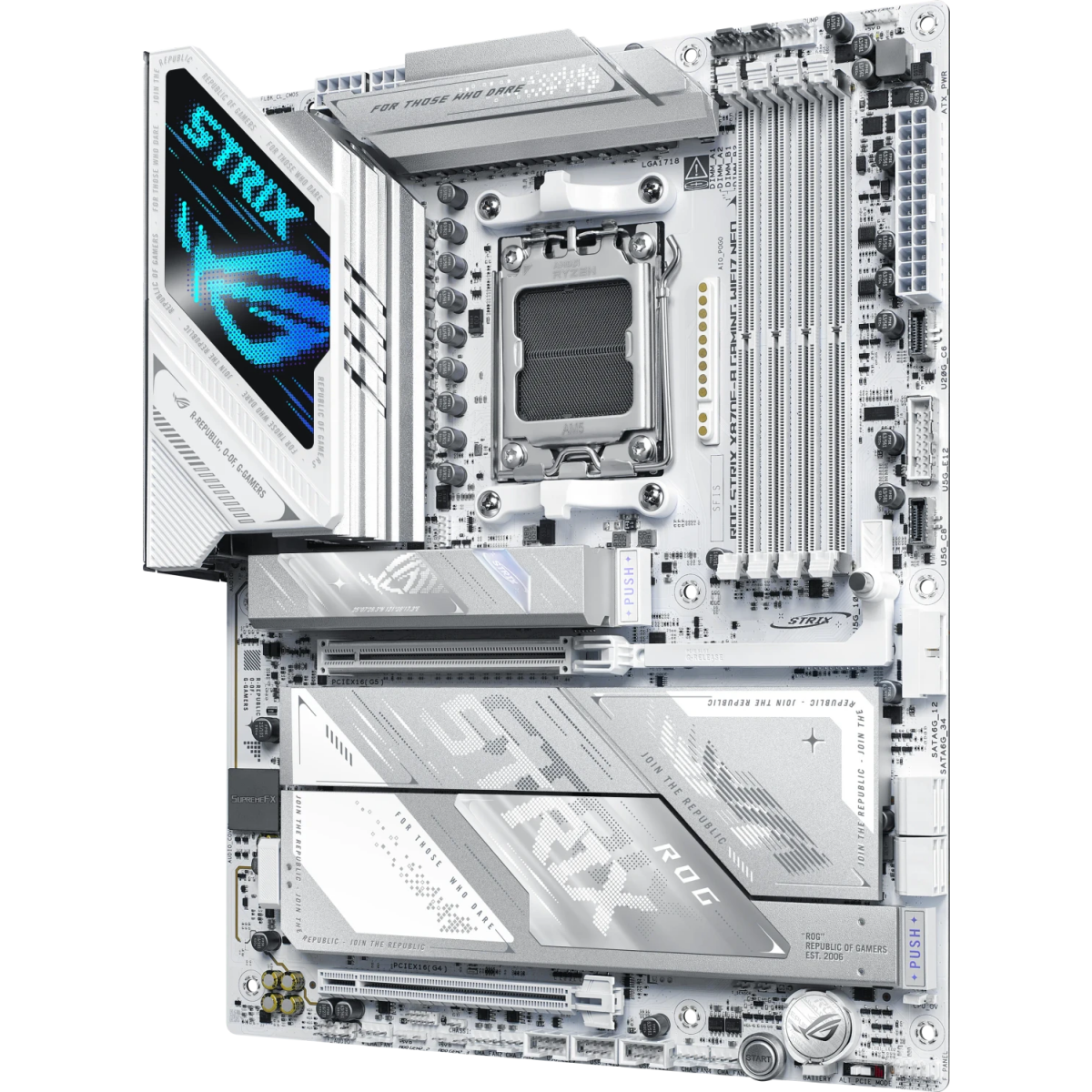

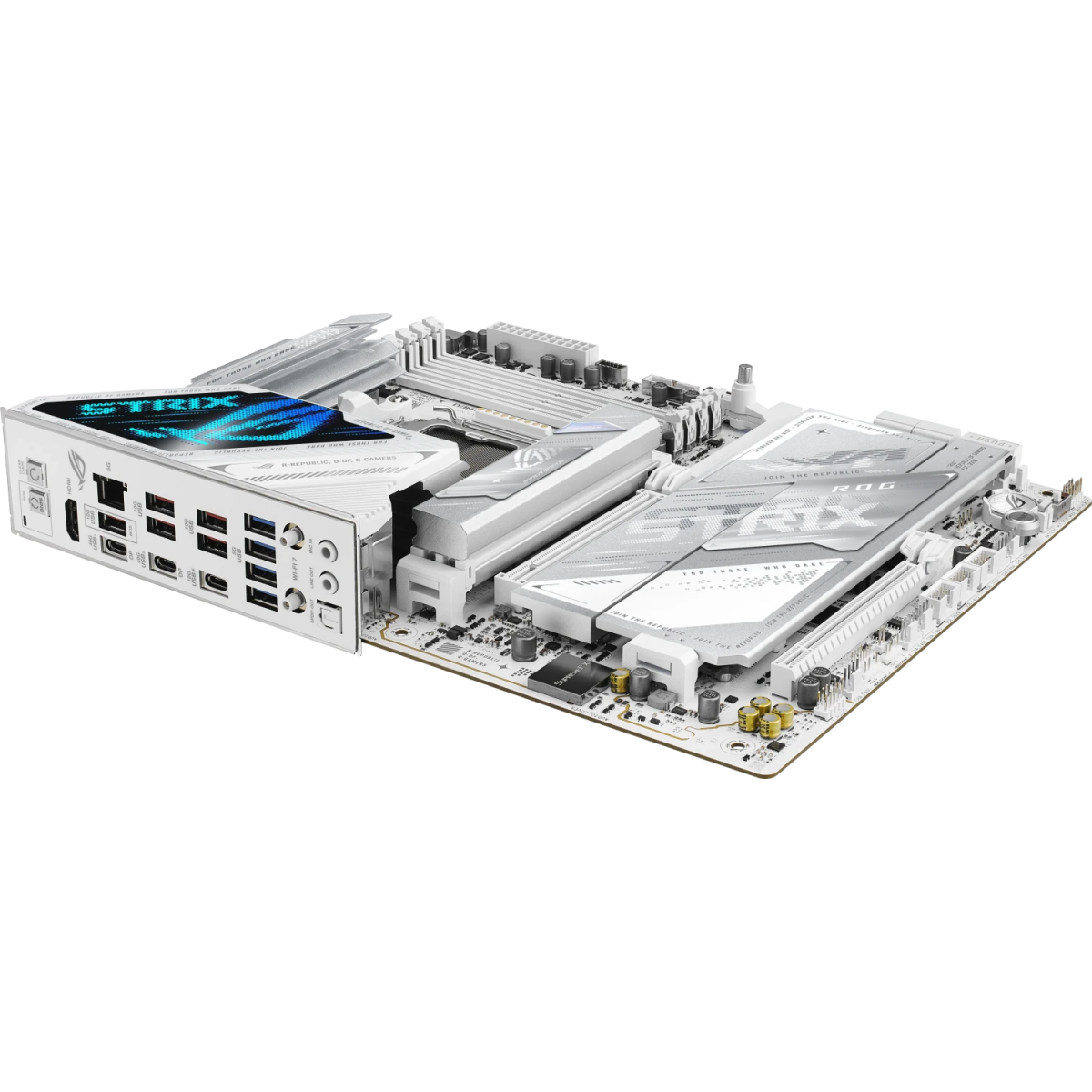

Pamatplate ASUS ROG Strix X870E-A Gaming WIFI7 Neo White (90MB1P30-M0EAY0)
ID: 46234
Īsi par preci
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD X870E
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, PCIe 4.0x4, 4 x PCI-E M.2
- Grafiskā mikroshēmas kopa: Radeon Graphics
- Tīkla saskarne: 5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 2 x audio jacks, 4 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
- Apgaismojums: Jā
- Formfaktors: ATX
Pilnas specifikācijas
Nav noliktavā
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1P30-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870E
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
5 Gigabit Ethernet (100/1000/2500/5000 Mb/c), Wi-Fi, Bluetooth
Tīkla kontrolieris ........................................................................................................................................................................................................
Realtek 5GbE LAN
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Papildu
Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................
8 x 4-pin
ATX 12 V barošanas ligzda ........................................................................................................................................................................................................
2 x 8-pin
Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................
3 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen2x2 Type-C
ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................
3 x 3-pin
Apgaismojums ........................................................................................................................................................................................................
jā
Formfaktors ........................................................................................................................................................................................................
ATX
Piegādes veids ........................................................................................................................................................................................................
Retail
Noformējumā izmantotās krāsas ........................................................................................................................................................................................................
balts
Saskarnes

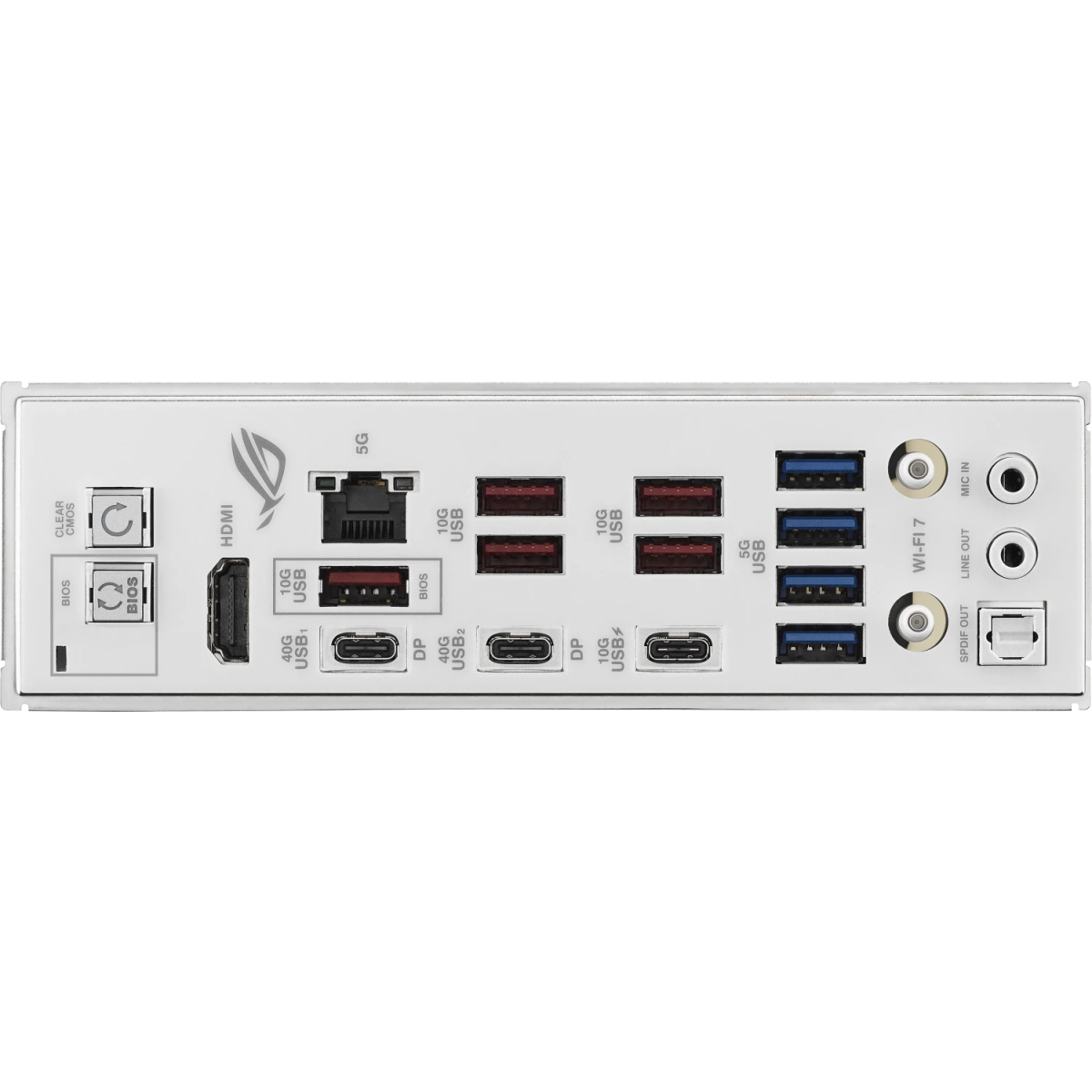

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
2 x audio jacks, 4 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, 2 x Thunderbolt 4/USB-C, RJ-45, S/PDIF (optiskais)
Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................
jā
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, PCIe 4.0x4, 4 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
M.2_1 M-Key PCIe 5.0 x4* 2242 / 2260 / 2280
M.2_2 M-Key PCIe 5.0 x4* 2280 / 22110
M.2_3 M-Key PCIe 4.0 x4 2280
M.2_4 M-Key PCIe 4.0 x4 2280
M.2_E E-Key PCIe (WiFi/BT) 2230 (Occupied by WiFi 7 card)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Audio/Video
Integrētais video ........................................................................................................................................................................................................
jā (ja tiek izmantots procesors ar video kodolu)
Grafiskā mikroshēmas kopa ........................................................................................................................................................................................................
Radeon Graphics
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Audio kontrolieris ........................................................................................................................................................................................................
Realtek ALC4080
Papildus
Izmēri (PxAxD) ........................................................................................................................................................................................................
305 x 244 x 50 mm
Svars ........................................................................................................................................................................................................
1.9 kg
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.
