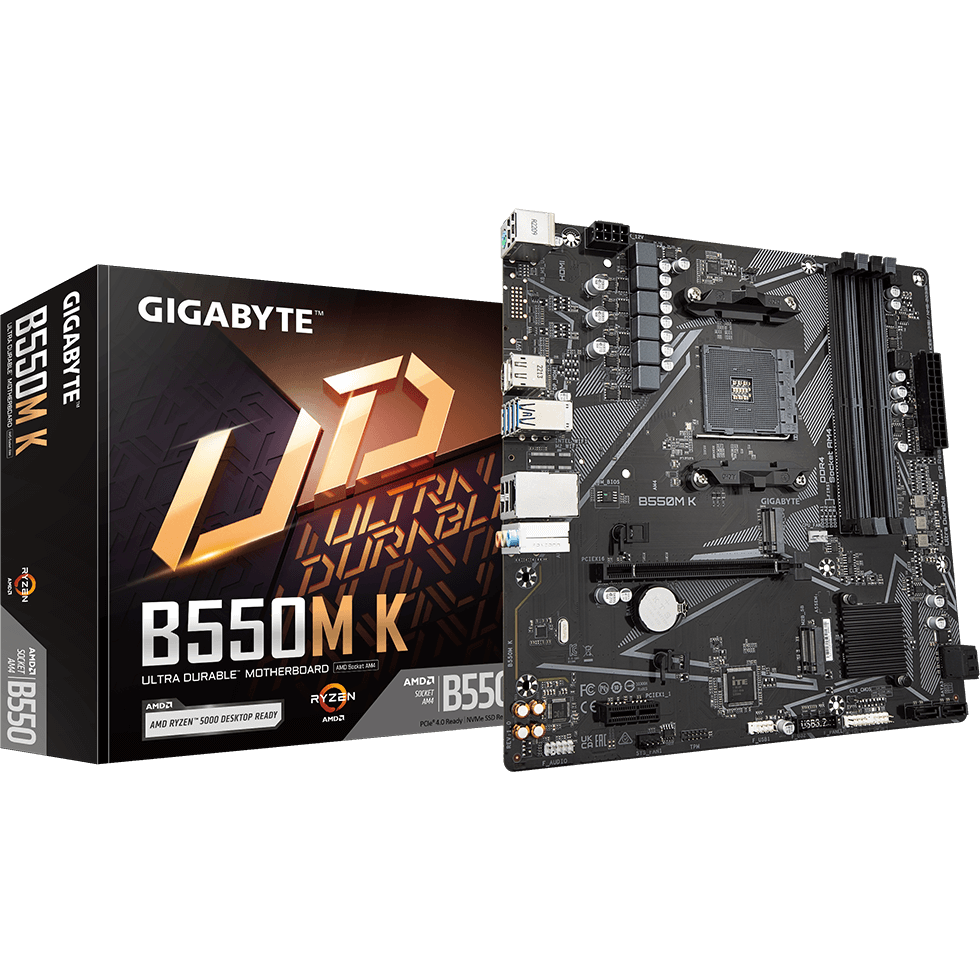

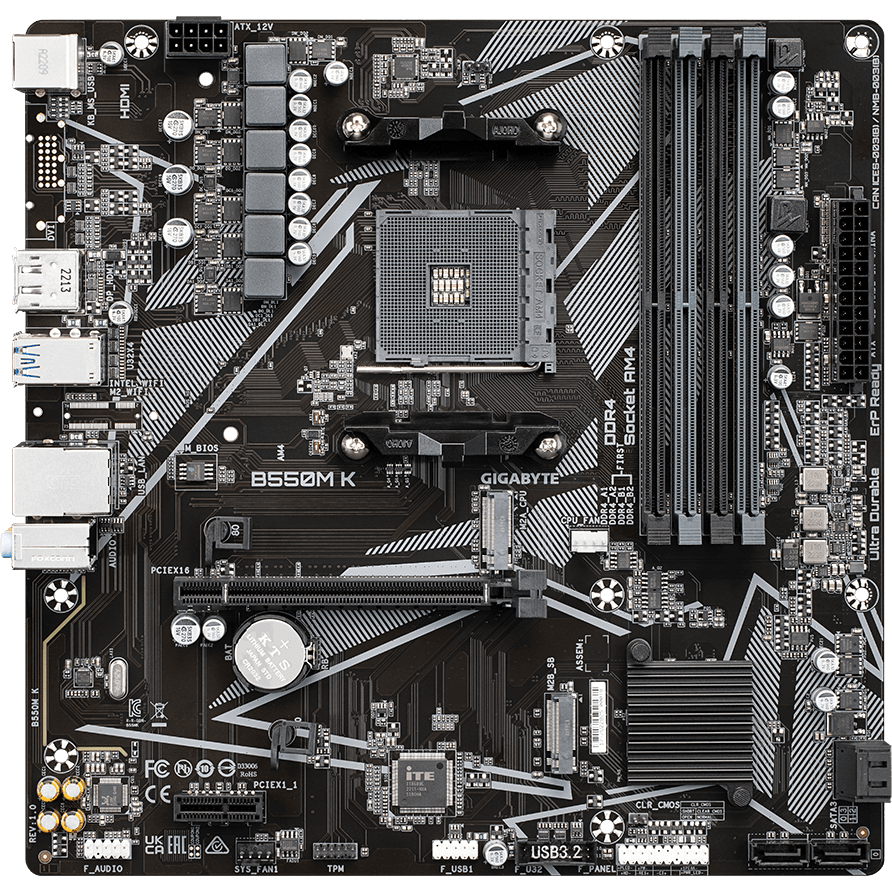

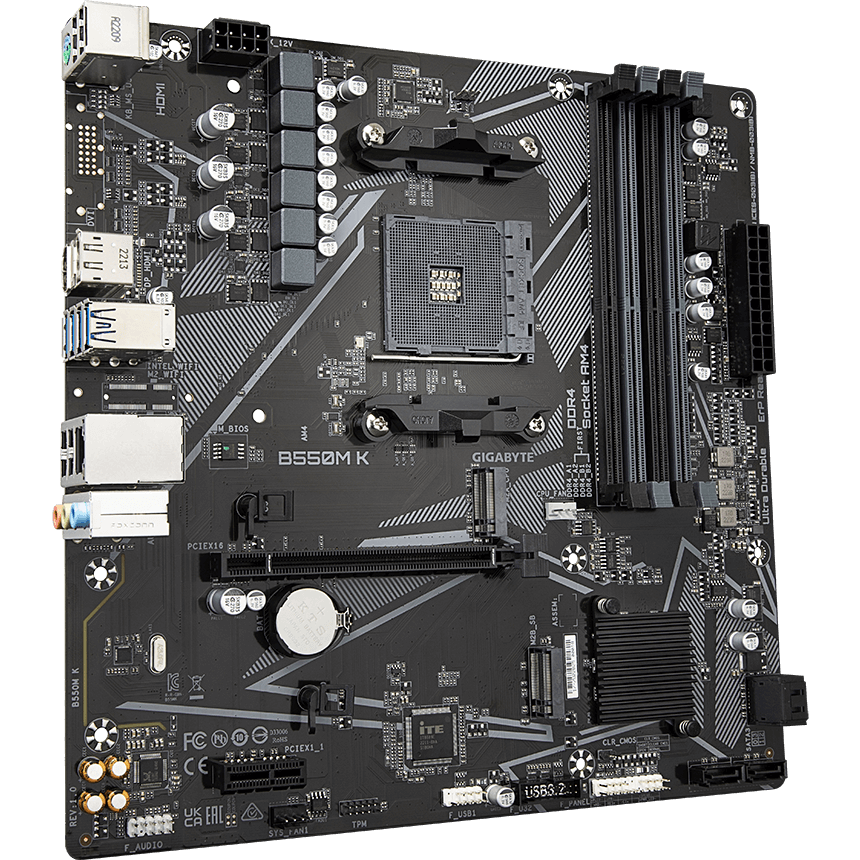

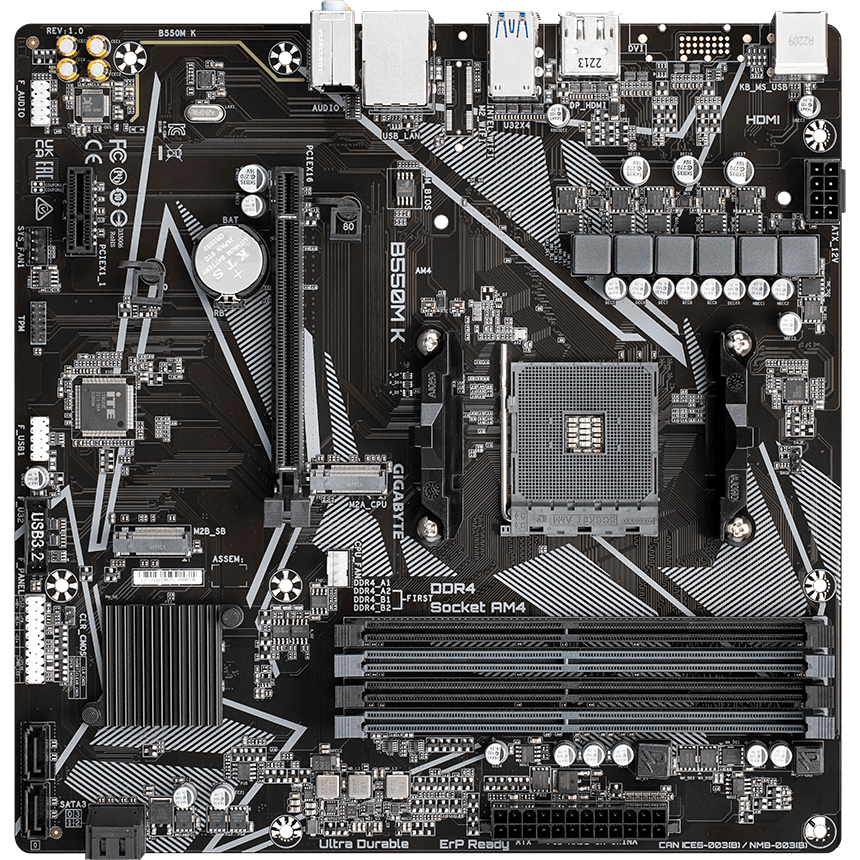

Pamatplate Gigabyte B550M K

ID: 476825

Īsi par preci

Ligzda: AM4
Mikroshēmu kopa (Chipset): AMD B550
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: PCI-E 4.0 x16, PCI-E x1, 2 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 4 x USB 2.0, 4 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45
Formfaktors: mATX

Pilnas specifikācijas

9.230,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

B550M K

Ligzda ........................................................................................................................................................................................................

AM4

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B550

Saskarnes

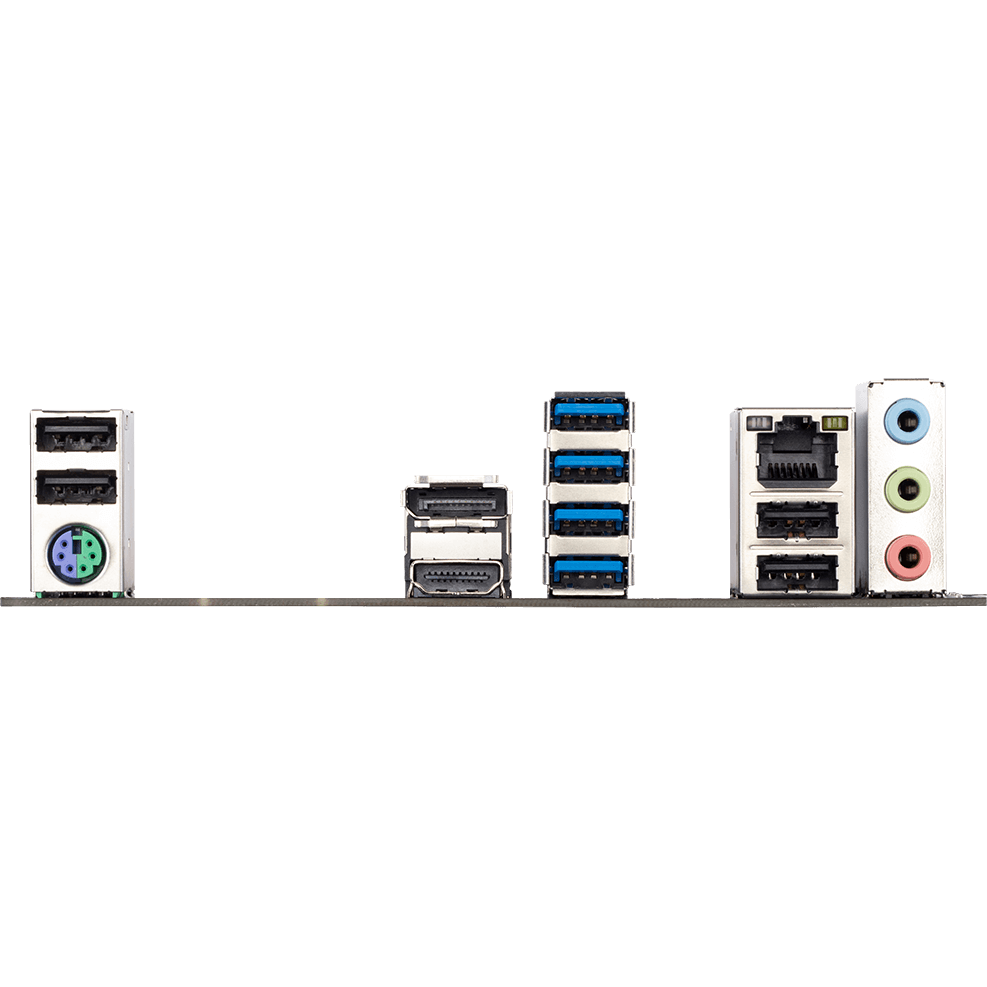

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 4 x USB 2.0, 4 x USB 3.2 Gen1, HDMI, DisplayPort, RJ-45

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

PCI-E 4.0 x16, PCI-E x1, 2 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Socket 3, M key, 2280 (AMD Ryzen 5000 Series/3000 Series: SATA & PCIe 4.0 x4/x2; AMD Ryzen 5000 G-Series/4000 G-Series: SATA & PCIe 3.0 x4/x2);
- Socket 3, M key, 2280 (PCIe 3.0 x2).

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

USB 2.0, USB 3.2 Gen1

Papildu informācija ........................................................................................................................................................................................................

1 x PCI Express x16 slot, integrated in the CPU: - AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode;
- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0 x16 mode.

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

melns, pelēks

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com

Dārgie klienti! Lūdzu, pirms pirkšanas pārbaudiet preces aprakstu ražotāja oficiālajā tīmekļvietnē. Precizējiet specifikāciju, pieejamību noliktavā un cenu pie internetveikala menedžeriem. Ražotājs var mainīt ārējo izskatu, komplektāciju un parametrus bez iepriekšēja paziņojuma.

‌
