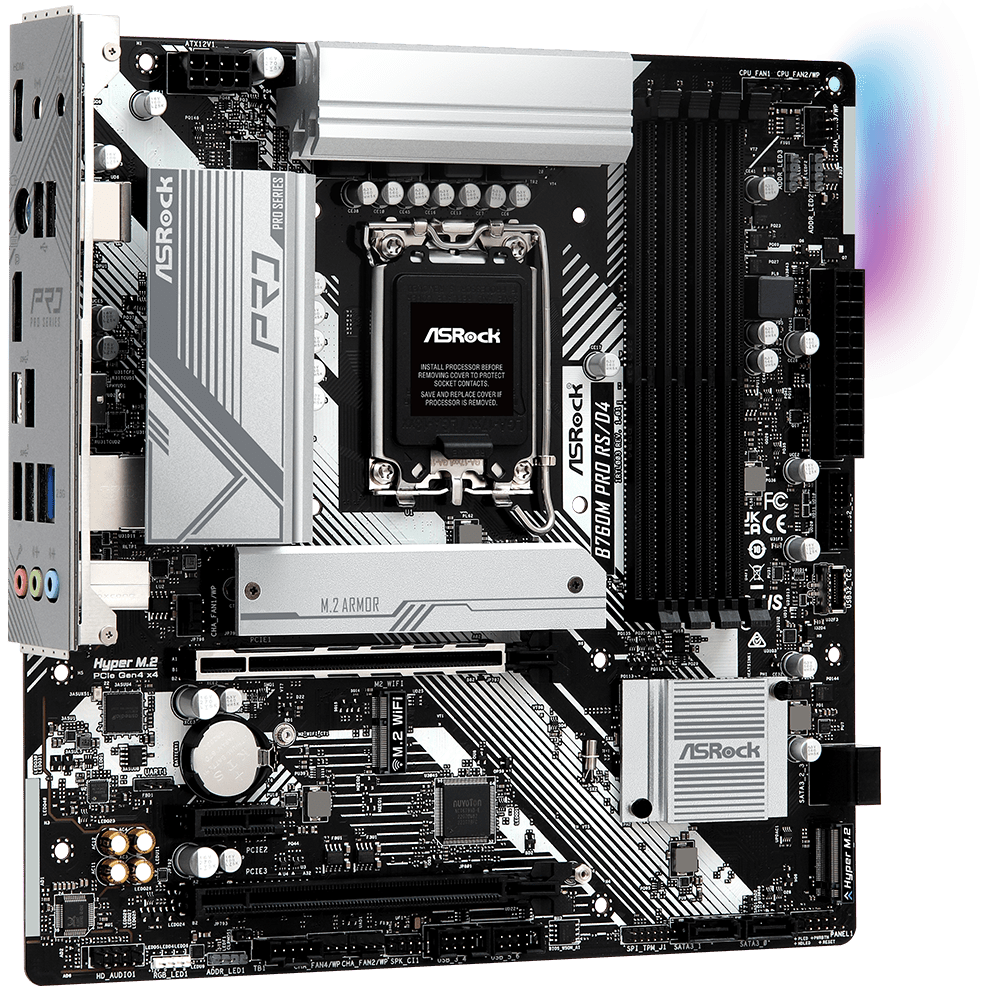

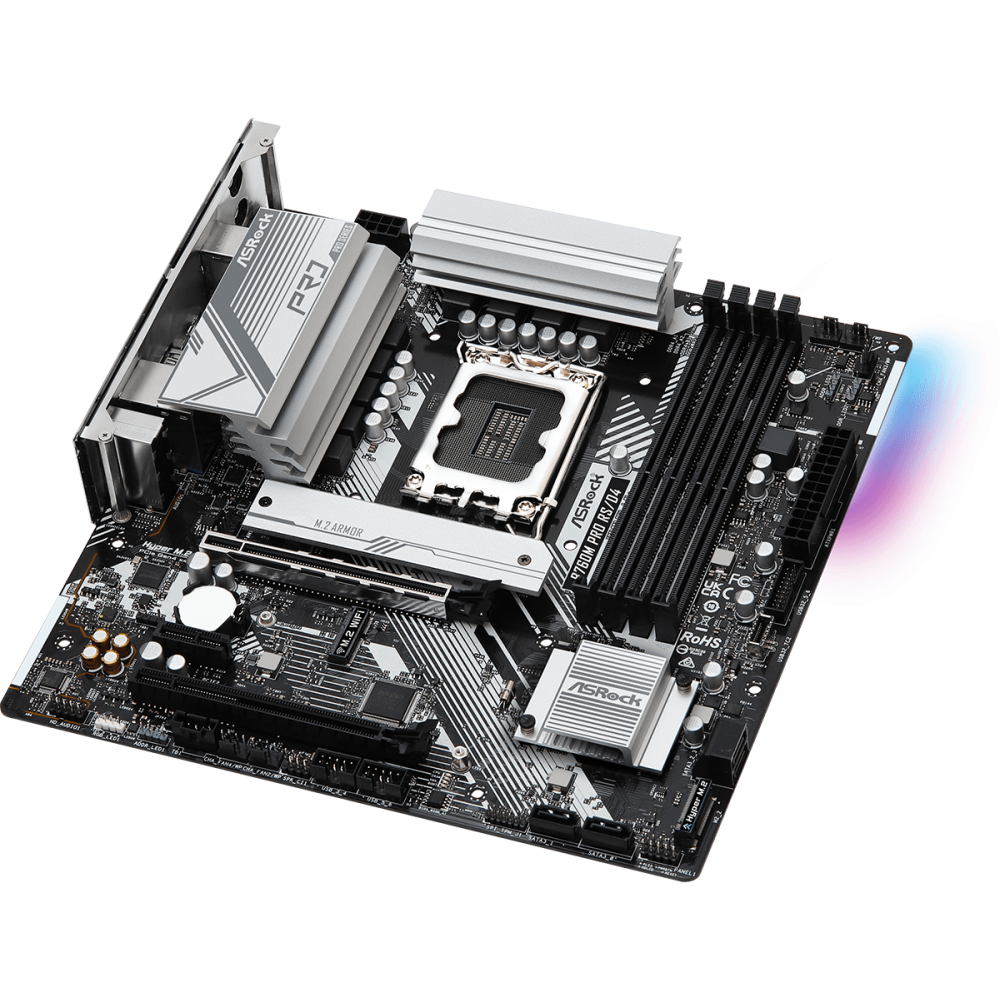

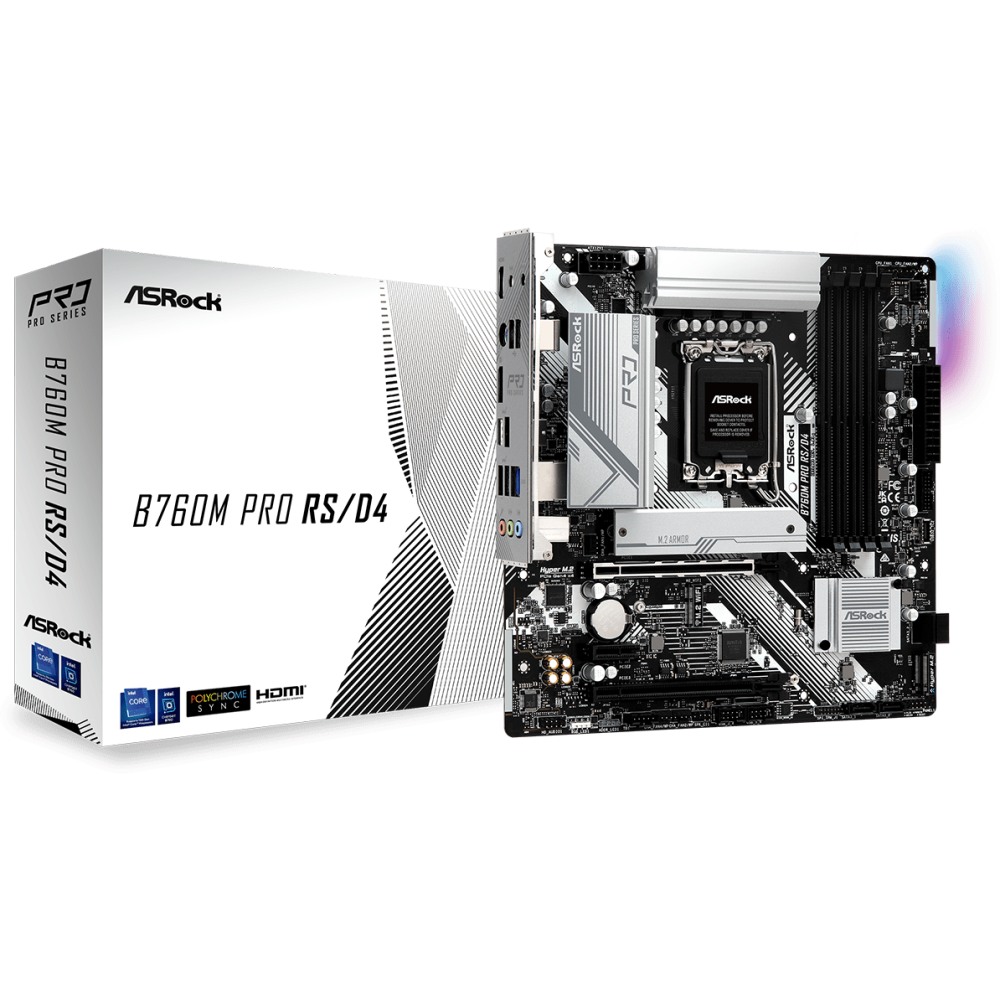

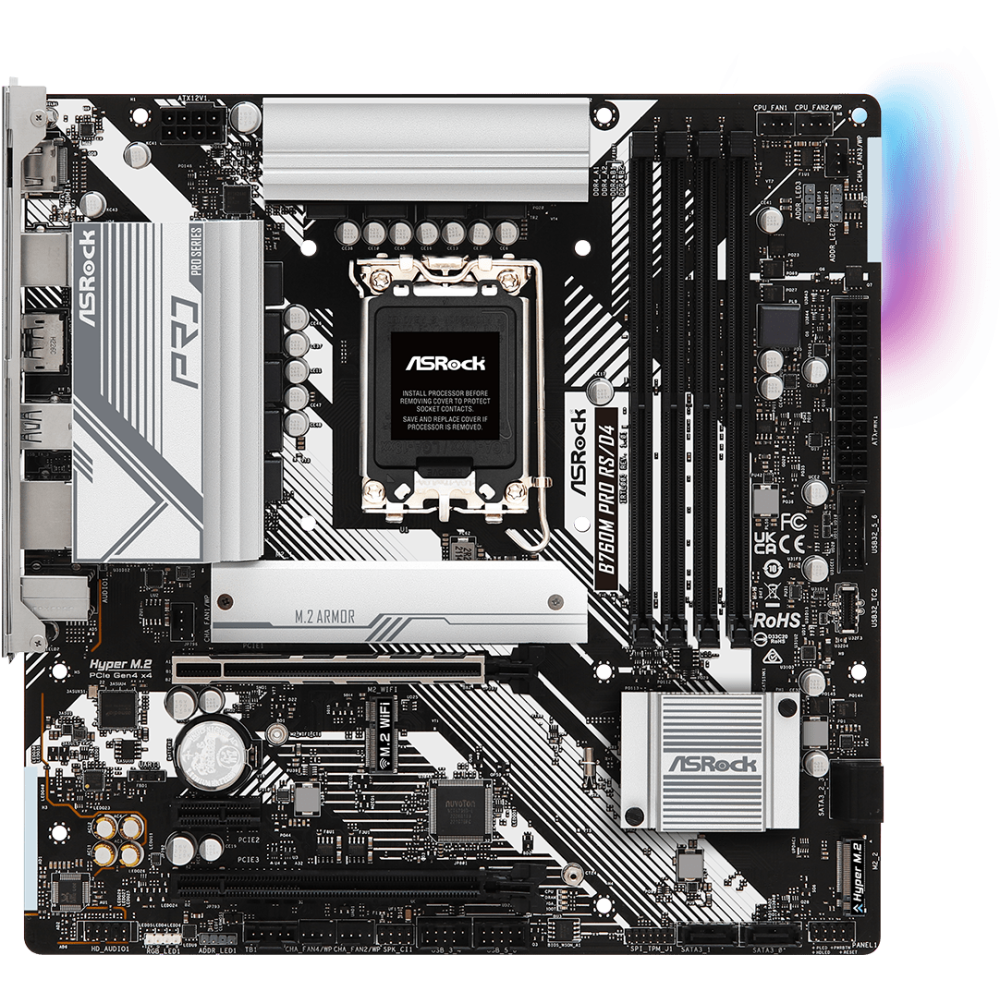

Pamatplate ASRock B760M Pro RS/D4

ID: 478408

Īsi par preci

Ligzda: LGA 1700
Mikroshēmu kopa (Chipset): Intel B760
Atmiņas slotu skaits: 4
Atmiņas veids: DDR4
Paplašināšanas sloti: 2 x PCI-E 4.0 x16, PCI-E x1, 3 x PCI-E M.2
Tīkla saskarne: 2.5 Gigabit Ethernet (100/1000/2500 Mbps)
Ligzdas aizmugurējā panelī: PS/2, 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, DisplayPort, RJ-45
Apgaismojums: Jā
Formfaktors: mATX

Pilnas specifikācijas

14.220,⁰⁰ €

Ir noliktavā

Iespēja iegādāties uz kredīta ar Lateko līzings

Raksturojumi

Pamata

Ražotājs ........................................................................................................................................................................................................

ASRock

Ražotāja kods ........................................................................................................................................................................................................

B760M PRO RS/D4

Ligzda ........................................................................................................................................................................................................

LGA 1700

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

Intel B760

Saskarnes

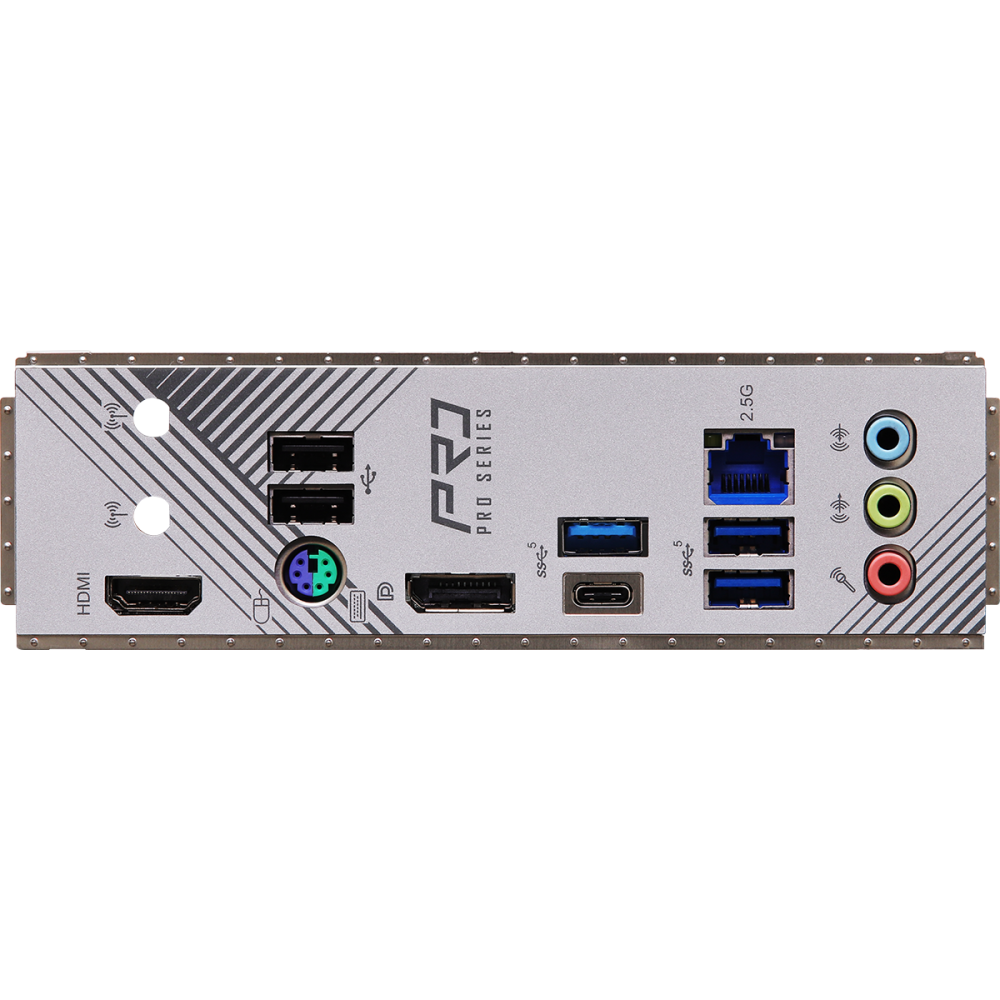

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 2 x USB 2.0, 3 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, HDMI, DisplayPort, RJ-45

Barošanas apakšsistēmas radiators (mosfeti) ........................................................................................................................................................................................................

jā

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 5, 10

Audio/Video

Integrētais video ........................................................................................................................................................................................................

jā (ja tiek izmantots procesors ar video kodolu)

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

2 x PCI-E 4.0 x16, PCI-E x1, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

- Key M, 2242/2260/2280 (PCIe Gen4x4);
- Key M, 2280 (PCIe Gen4x4);
- Key E, supports WiFi/BT PCIe WiFi type 2230 and Intel CNVio/CNVio2 modules (built-in WiFi/BT).

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

x16/x4

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

2.5 Gigabit Ethernet (100/1000/2500 Mbps)

Tīkla kontrolieris ........................................................................................................................................................................................................

Dragon RTL8125BG

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR4

Atmiņas slotu skaits ........................................................................................................................................................................................................

Papildu

Ligzdas korpusa ventilatoru pieslēgšanai ........................................................................................................................................................................................................

4 x 4-pin

ATX 12 V barošanas ligzda ........................................................................................................................................................................................................

8-pin

Iekšējās USB pieslēgvietas platē ........................................................................................................................................................................................................

2 x USB 2.0, USB 3.2 Gen1, USB 3.2 Gen1 Type-C

ARGB 5V savienotāji uz plates ........................................................................................................................................................................................................

3 x 3-pin

RGB 12V savienotāji uz plates ........................................................................................................................................................................................................

4-pin

Apgaismojums ........................................................................................................................................................................................................

jā

Formfaktors ........................................................................................................................................................................................................

mATX

Piegādes veids ........................................................................................................................................................................................................

Retail

Noformējumā izmantotās krāsas ........................................................................................................................................................................................................

balts, melns, pelēks

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

asrock.com
