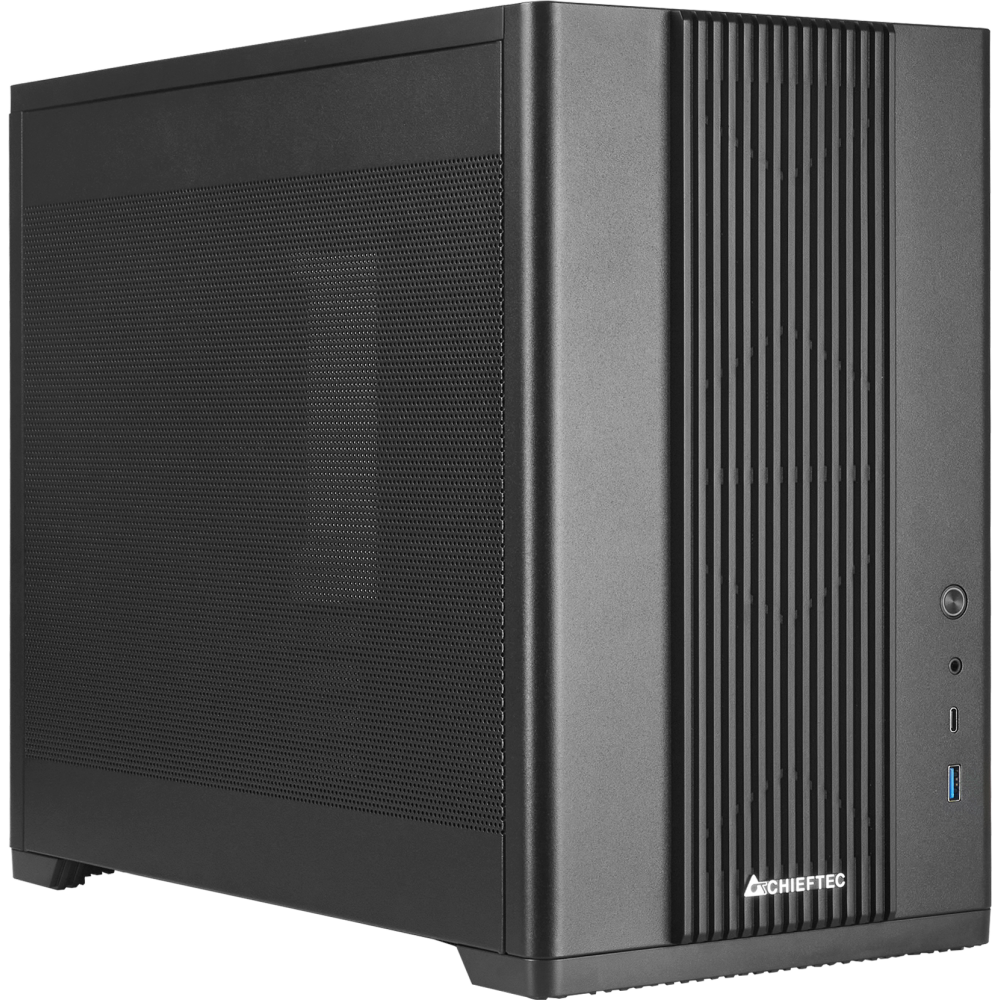

Case Chieftec BX-10B-M-OP

Name: Case Chieftec BX-10B-M-OP
Brand: Chieftec
SKU: 677871
Price: 54.30 EUR
Availability: InStock

ID: 677871

Product Summary

Case type: Mini-Tower
Motherboard form factor: mATX, Mini-ITX
Power supply: without PSU
Maximum GPU Length: 355 mm
Maximum cooler height: 168 mm
Front Panel Interfaces: USB 3.0, USB Type-C, audio

Full Specifications

54,³⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

Chieftec

Manufacturer Code ........................................................................................................................................................................................................

BX-10B-M-OP

Case type ........................................................................................................................................................................................................

Mini-Tower

Motherboard form factor ........................................................................................................................................................................................................

mATX, Mini-ITX

Power supply ........................................................................................................................................................................................................

without PSU

PSU form factor ........................................................................................................................................................................................................

ATX

Power supply location ........................................................................................................................................................................................................

top

Features

Dust filter ........................................................................................................................................................................................................

on the lower panel

Additional Information ........................................................................................................................................................................................................

The mounting slots on the bottom panel are compatible with three 120 mm fans.

Colors used in design ........................................................................................................................................................................................................

Black

Additional fan mounts

Fan Mounting Locations ........................................................................................................................................................................................................

yes

Top Panel ........................................................................................................................................................................................................

2 x 120 mm или 2 x 140 mm

Bottom panel ........................................................................................................................................................................................................

2 x 140 mm или 3 x 120 mm

Radiator mounting locations

Liquid Cooling Support ........................................................................................................................................................................................................

yes

AIO cooler mounting size on the bottom panel ........................................................................................................................................................................................................

120 mm, 240 mm

AIO Cooler Mounting Size on Top Panel ........................................................................................................................................................................................................

120 mm, 240 mm

Liquid Cooling Mounting Size on Rear Panel ........................................................................................................................................................................................................

120 mm

Installed Fans

Included Fans ........................................................................................................................................................................................................

yes

Rear Panel ........................................................................................................................................................................................................

120 mm

Case Construction

Case material ........................................................................................................................................................................................................

steel

Case Body Wall Thickness ........................................................................................................................................................................................................

0.6 mm

Front Panel ........................................................................................................................................................................................................

with perforation

Internal 3.5"/2.5" Bays (Convertible) ........................................................................................................................................................................................................

Internal 2.5" Bays ........................................................................................................................................................................................................

Number of Expansion Slots ........................................................................................................................................................................................................

HDD Placement ........................................................................................................................................................................................................

longitudinal

Vertical SSD/HDD Mounting ........................................................................................................................................................................................................

yes

Maximum GPU Length ........................................................................................................................................................................................................

355 mm

Maximum cooler height ........................................................................................................................................................................................................

168 mm

Maximum PSU Length ........................................................................................................................................................................................................

220 mm

Front Panel Interfaces ........................................................................................................................................................................................................

USB 3.0, USB Type-C, audio

USB port location ........................................................................................................................................................................................................

front panel (bottom)

Special Feature

Dimensions (WxHxD) ........................................................................................................................................................................................................

204 x 340 x 415 mm

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.chieftec.eu

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
