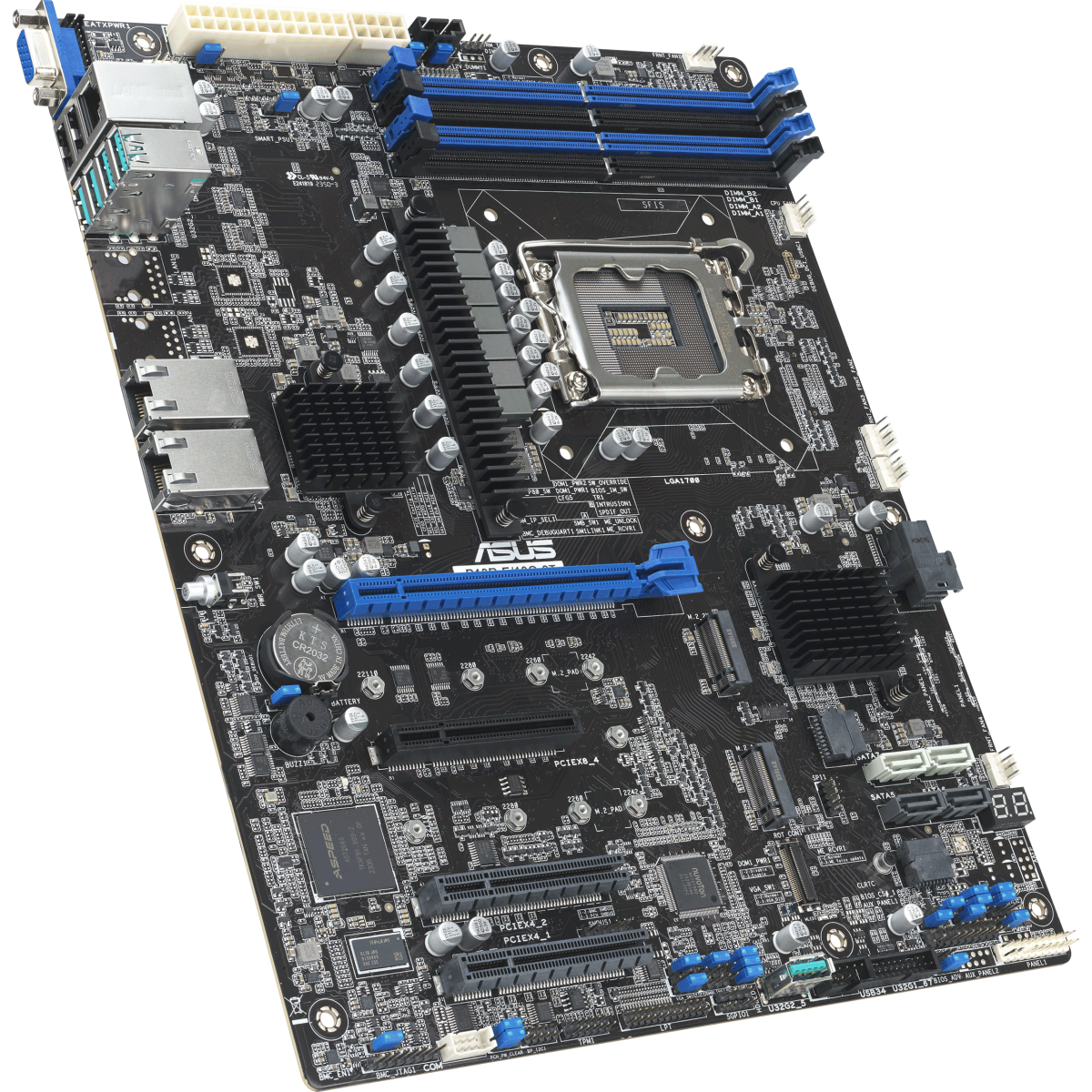

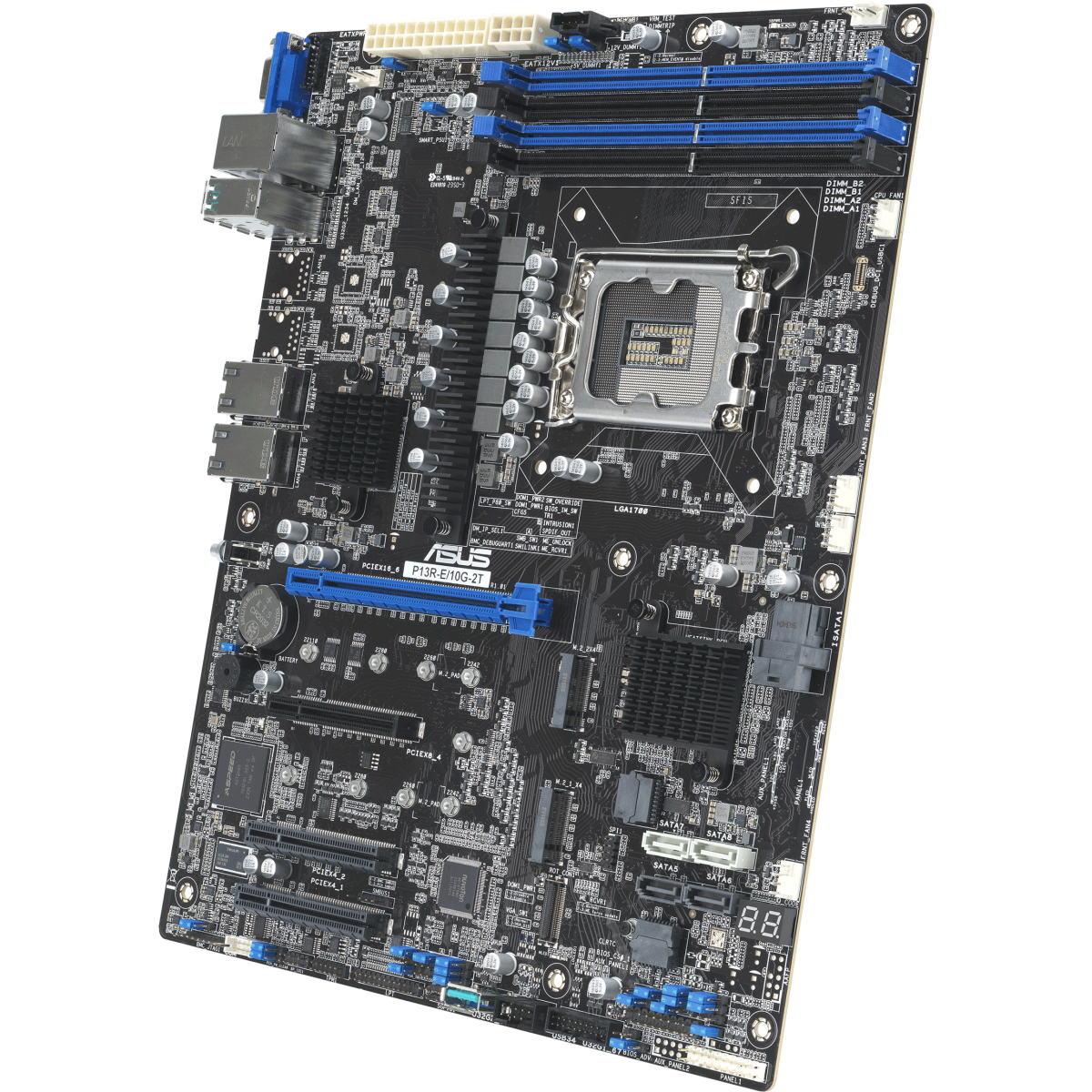

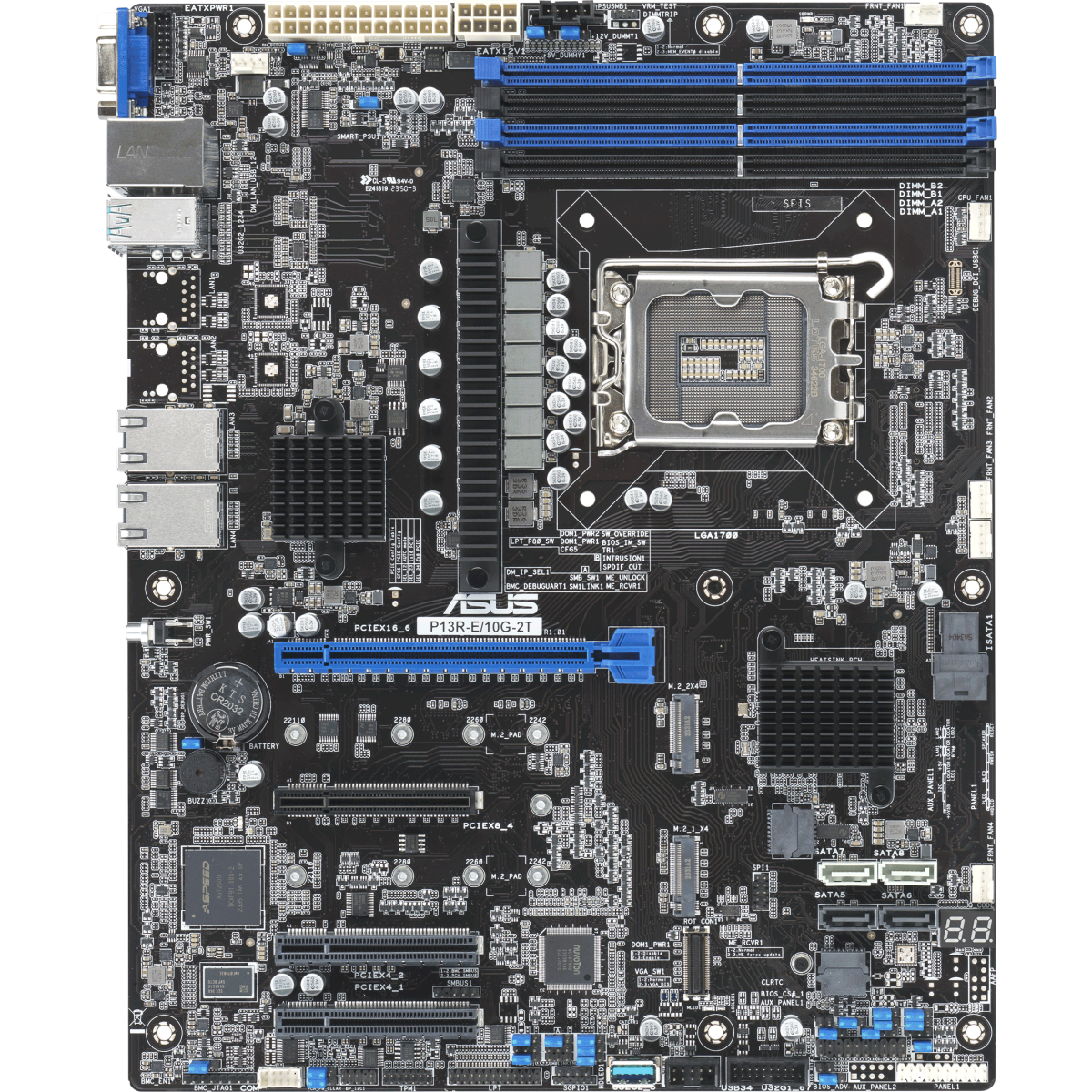

Server motherboard ASUS P13R-E/10G-2T

ID: 738801

Product Summary

Form Factor: ATX
Number of Sockets: 1
Socket: LGA 1700
Chipset: Intel C266
Number of Memory Slots: 4
Memory Standard: DDR5
Disk Controllers: 8 x SATA-III (6 Gb/s)
Network Interface: 2 x 10 Gigabit Ethernet (10 Gbps)

Full Specifications

573,⁶⁰ €

In stock

Specifications

Main

Manufacturer ........................................................................................................................................................................................................

ASUS

Manufacturer Code ........................................................................................................................................................................................................

P13R-E/10G-2T

Socket ........................................................................................................................................................................................................

LGA 1700

Number of Sockets ........................................................................................................................................................................................................

Maximum heat dissipation ........................................................................................................................................................................................................

95 week

Chipset ........................................................................................................................................................................................................

Intel C266

Network

Network Interface ........................................................................................................................................................................................................

2 x 10 Gigabit Ethernet (10 Gbps)

Additional

Form Factor ........................................................................................................................................................................................................

ATX

Additional Information ........................................................................................................................................................................................................

1 RJ-45 connector for remote control

Disk Controllers and Expansion Slots

Disk Controllers ........................................................................................................................................................................................................

8 x SATA-III (6 Gb/s)

Expansion Slots ........................................................................................................................................................................................................

PCI-E 5.0 x16, 3 x PCI-E x8, 2 x M.2

M.2 Interface ........................................................................................................................................................................................................

PCI-E

M.2 Size ........................................................................................................................................................................................................

22110

Audio/Video

Integrated Video Adapter ........................................................................................................................................................................................................

yes, Aspeed AST2600

Connectivity

Rear Panel Connectors ........................................................................................................................................................................................................

2 x USB 2.0, 4 x USB 3.2 Gen 2, VGA, 3 x RJ-45

Main Power Connector ........................................................................................................................................................................................................

24-pin

Processor Power Connector ........................................................................................................................................................................................................

8-pin

Memory

Memory Standard ........................................................................................................................................................................................................

DDR5

Supported Memory Type ........................................................................................................................................................................................................

ECC

Number of Memory Slots ........................................................................................................................................................................................................

Frequency Support ........................................................................................................................................................................................................

3600 MHz, Support for 4000 MHz frequencies, Support for 4400 MHz frequencies

Maximum Memory Capacity ........................................................................................................................................................................................................

128 GB

Special Feature

Weight ........................................................................................................................................................................................................

0.76 kg

Warranty ........................................................................................................................................................................................................

12/24 months

Manufacturer's website ........................................................................................................................................................................................................

www.asus.com

Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.

‌
