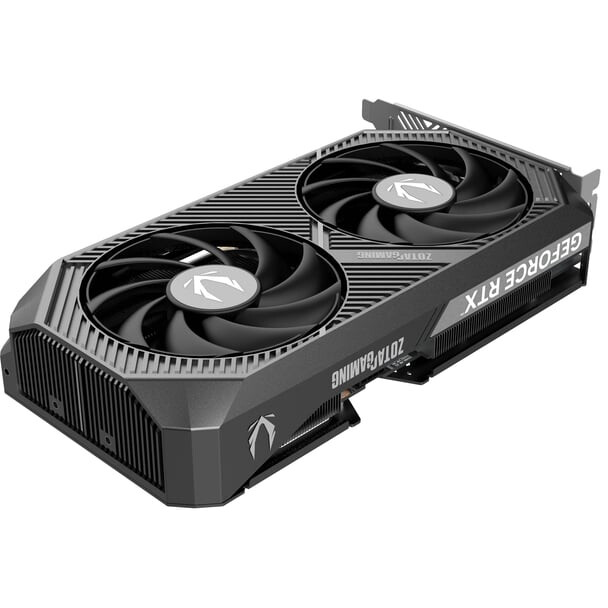

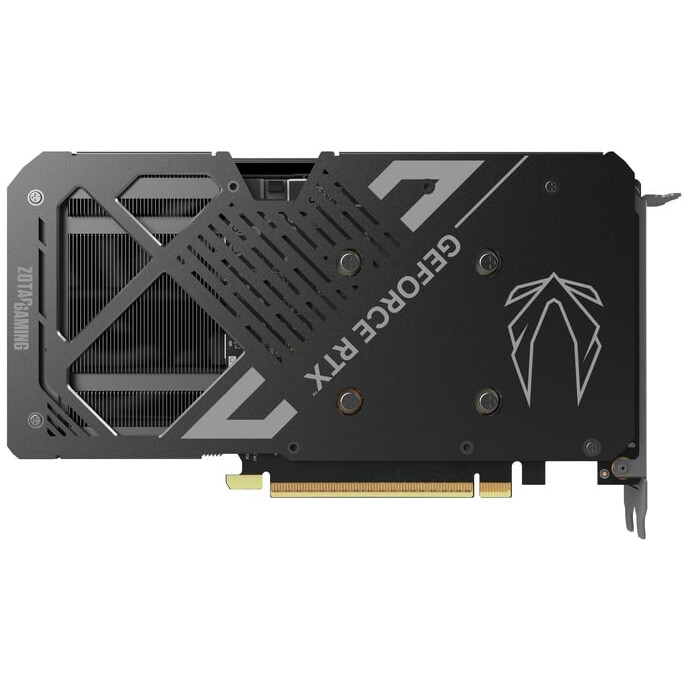

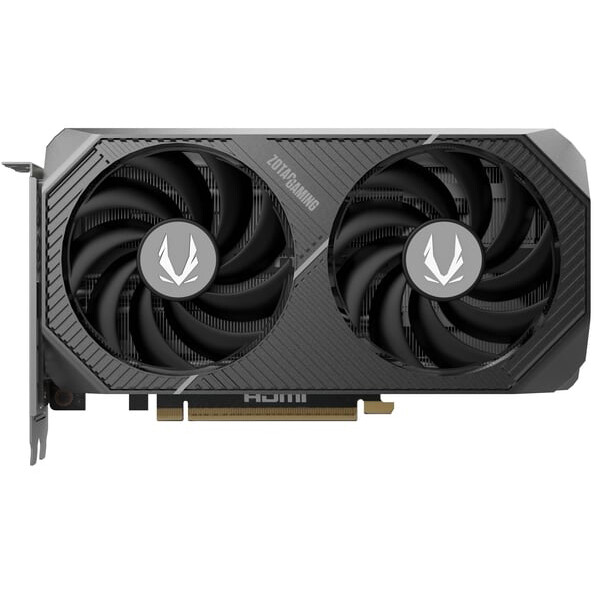

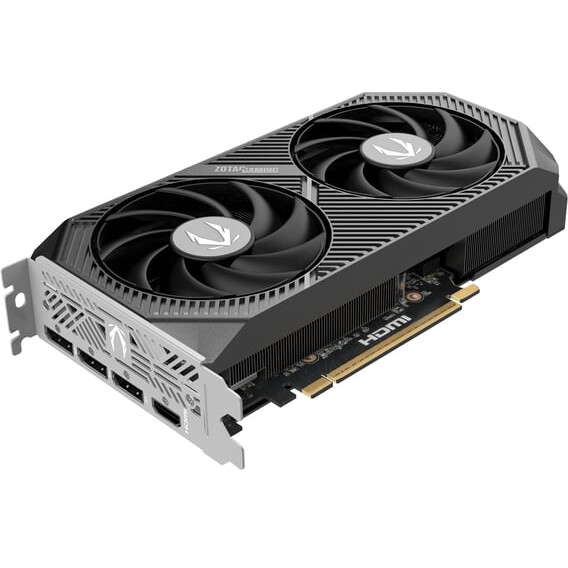

- Video Card NVIDIA GeForce RTX 5060 Ti Zotac Twin Edge OC 8GB (ZT-B50610H-10M)
Video Card NVIDIA GeForce RTX 5060 Ti Zotac Twin Edge OC 8GB (ZT-B50610H-10M)
ID: 749690
Product Summary
- Interface: PCI Express 5.0
- GPU Clock Speed: 2407 MHz
- Graphics Processor Frequency (Boost): 2602 MHz
- Memory Size: 8 GB
- Memory Type: GDDR7
- Video Memory Frequency: 28000 MHz
- Memory Bus Width: 128 bit

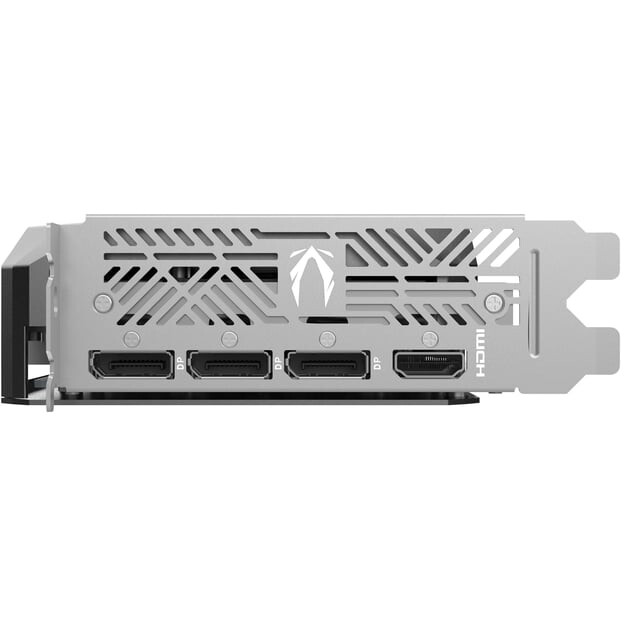

- Ports: HDMI, 3 x DisplayPort
- Length: 221 mm
- Supply Type: Retail
Full Specifications
626,90 €626,90 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
ZT-B50610H-10M
Interface ........................................................................................................................................................................................................
Graphics Processor Manufacturer ........................................................................................................................................................................................................
Series ........................................................................................................................................................................................................
Memory
Memory Size ........................................................................................................................................................................................................
Memory Type ........................................................................................................................................................................................................
Memory Bus Width ........................................................................................................................................................................................................
128 bit
Bandwidth ........................................................................................................................................................................................................
448 GB/c
Video Memory Frequency ........................................................................................................................................................................................................
28000 MHz
Additional
Number of supported monitors ........................................................................................................................................................................................................
Maximum Resolution ........................................................................................................................................................................................................
7680x4320
Additional power requirement ........................................................................................................................................................................................................
yes
Additional Power Connector ........................................................................................................................................................................................................
Recommended Power Supply Unit Wattage ........................................................................................................................................................................................................
600 Week
TGP ........................................................................................................................................................................................................
180 week
Supply Type ........................................................................................................................................................................................................
Colors Used in Design ........................................................................................................................................................................................................
black
Length ........................................................................................................................................................................................................
221 mm
Design
Number of occupied slots ........................................................................................................................................................................................................
Meets SFF-Ready standard (up to 304x151x50 mm) ........................................................................................................................................................................................................
yes
Cooling System ........................................................................................................................................................................................................
Number of Fans ........................................................................................................................................................................................................
Ports ........................................................................................................................................................................................................
HDMI, 3 x DisplayPort
Video Processor
Graphics Processor Architecture ........................................................................................................................................................................................................
nVidia Blackwell
{GPU Codename} ........................................................................................................................................................................................................
Process Technology ........................................................................................................................................................................................................
5 nm
GPU Clock Speed ........................................................................................................................................................................................................
2407 MHz
Graphics Processor Frequency (Boost) ........................................................................................................................................................................................................
2602 MHz
Number of Universal Processors ........................................................................................................................................................................................................
4608
Number of Texture Units ........................................................................................................................................................................................................
144
Number of Ray Tracing Cores ........................................................................................................................................................................................................
36
Number of Tensor Cores ........................................................................................................................................................................................................
144
OC version ........................................................................................................................................................................................................
yes
SLI/CrossFire Support ........................................................................................................................................................................................................
No
DirectX Support ........................................................................................................................................................................................................
DirectX 12 Ultimate
OpenGL Support ........................................................................................................................................................................................................
OpenGL 4.6
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
221 x 121 x 42 mm
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
Dear Customers, Please read the product description on the manufacturer's official website before making a purchase. Please check with the online store manager to verify specifications, availability in stock, and price. The manufacturer is at liberty to change the look, composition or specifications without notice.
