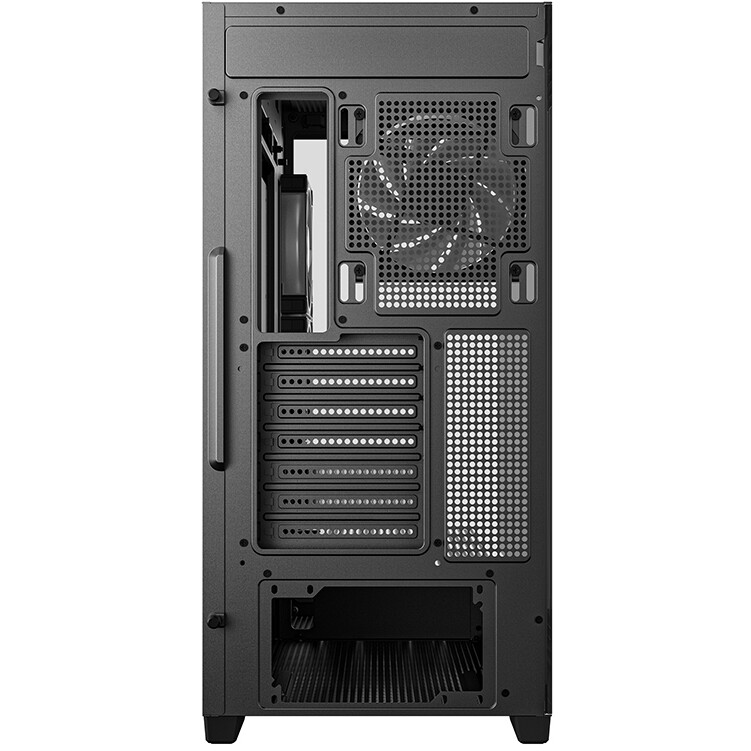

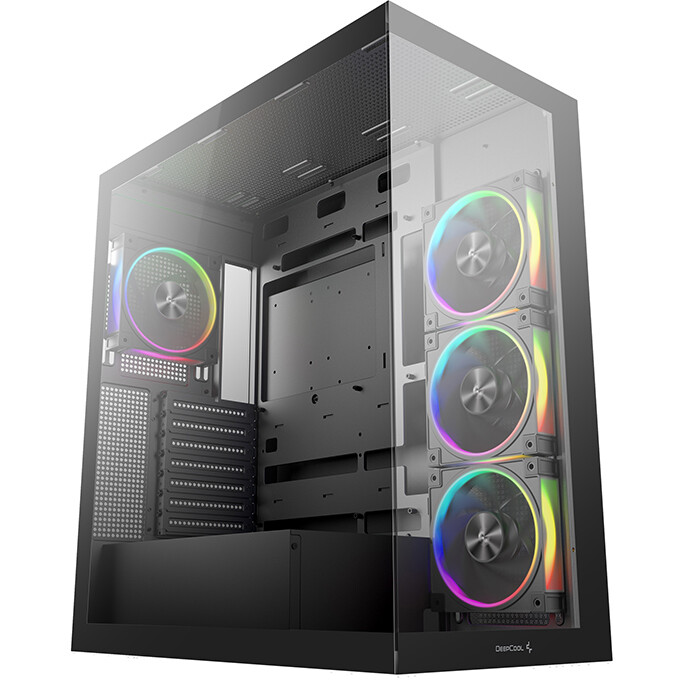

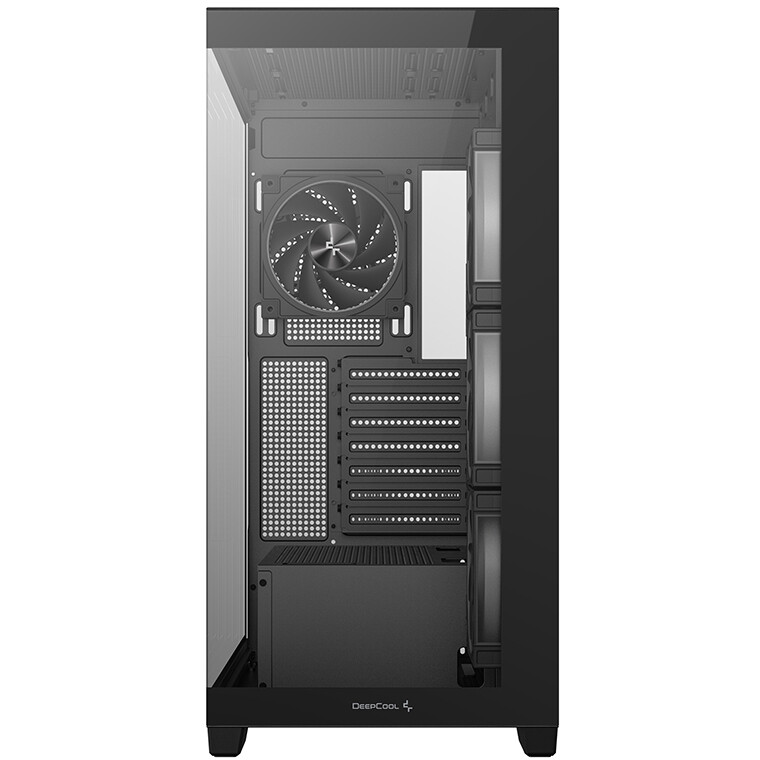

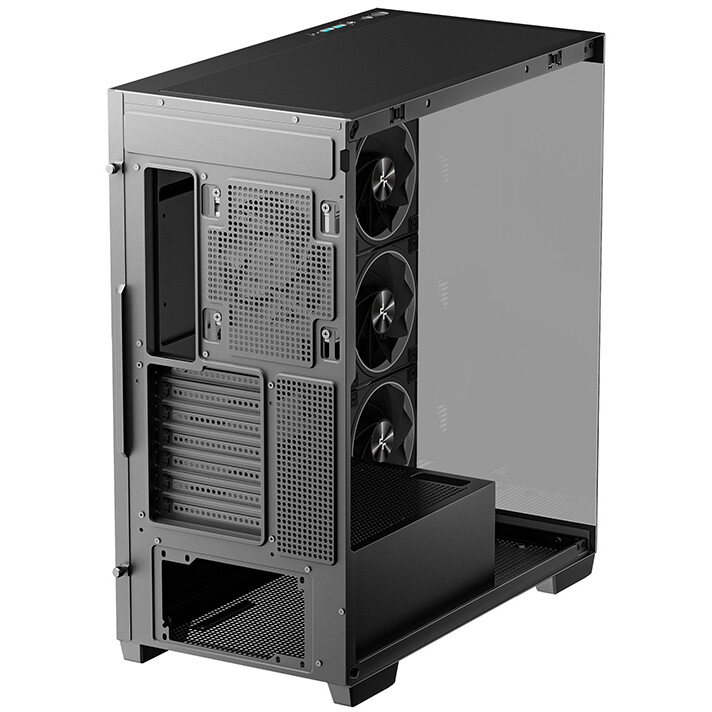

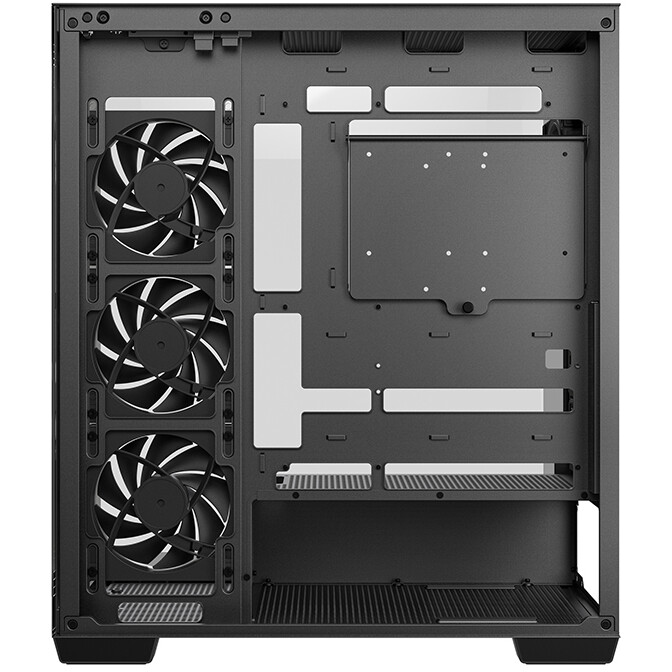

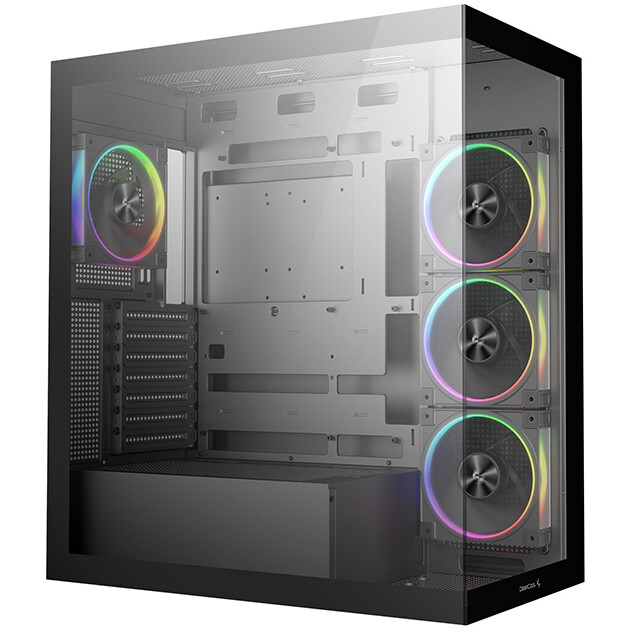

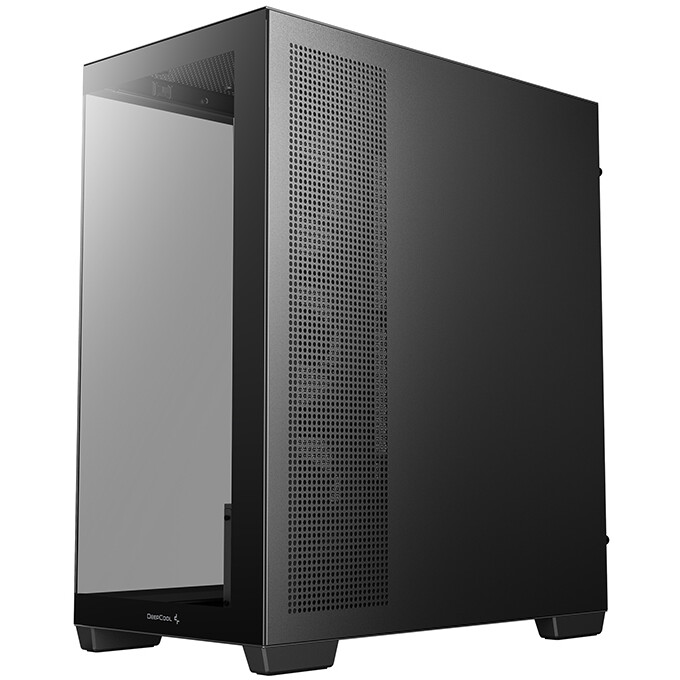

Case DeepCool CG580 4F V2 Black
ID: 749869
Modification
Product Summary
- Case type: Midi-Tower
- Motherboard form factor: ATX, mATX, Mini-ITX
- Power supply: without PSU
- Side Panel Window Presence: yes
- Maximum GPU Length: 410 mm
- Maximum cooler height: 176 mm
- Case Lighting: yes
- Front Panel Interfaces: 2 x USB 3.0, USB Type-C, audio
Full Specifications
79,00 €79,00 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
R-CG580-BKADA4-G-2
Case type ........................................................................................................................................................................................................
Motherboard form factor ........................................................................................................................................................................................................
ATX, mATX, Mini-ITX
Power supply ........................................................................................................................................................................................................
PSU form factor ........................................................................................................................................................................................................
ATX
Power supply location ........................................................................................................................................................................................................

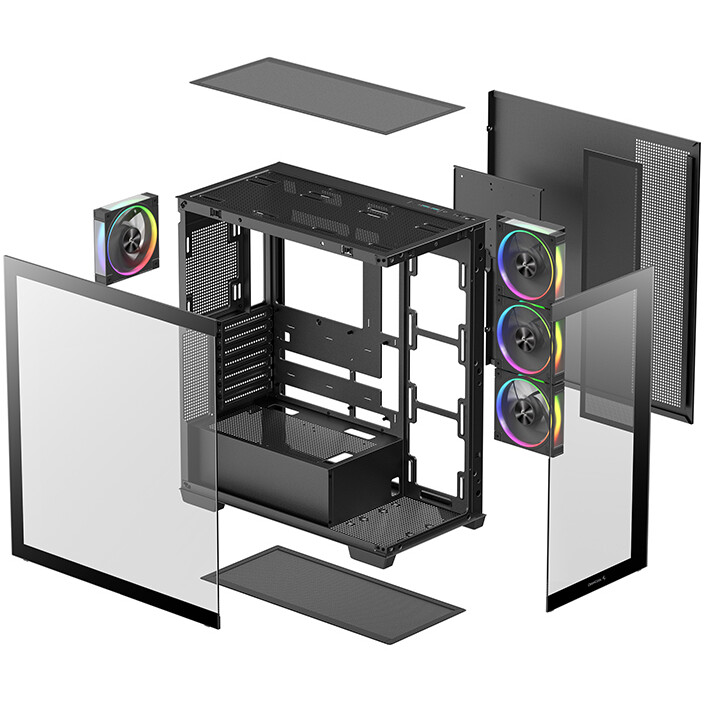

Installed Fans
Included Fans ........................................................................................................................................................................................................
yes

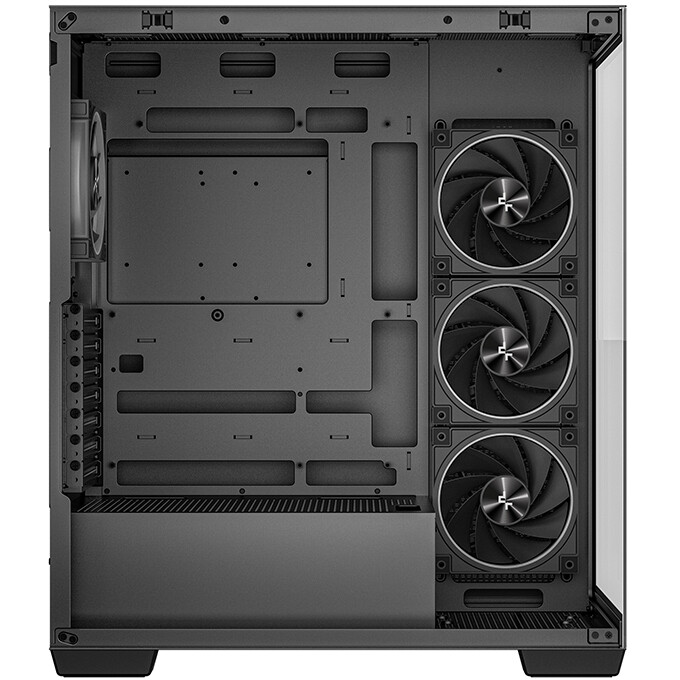

Side Panel ........................................................................................................................................................................................................
3 x 120 mm
Rear Panel ........................................................................................................................................................................................................
120 mm
Additional fan mounts
Fan Mounting Locations ........................................................................................................................................................................................................
yes
Top Panel ........................................................................................................................................................................................................
2 x 140 mm или 3 x 120 mm
PSU shroud ........................................................................................................................................................................................................
2 x 120 mm
Bottom panel ........................................................................................................................................................................................................
120 mm
Features
Fan Controller ........................................................................................................................................................................................................
yes
Support for back-connect motherboards ........................................................................................................................................................................................................
yes
Board Form Factor with Hidden Connection ........................................................................................................................................................................................................
ATX, mATX
Case Lighting ........................................................................................................................................................................................................
yes
Backlight Type ........................................................................................................................................................................................................
ARGB (Addressable RGB)
Dust filter ........................................................................................................................................................................................................
on the lower panel, on the side panel, on the top panel
Additional Information ........................................................................................................................................................................................................
When installing the liquid cooling system on the side panel, the maximum length of the graphics card is limited to 262 mm.
Colors used in design ........................................................................................................................................................................................................
Black
Radiator mounting locations
Liquid Cooling Support ........................................................................................................................................................................................................
yes
Liquid Cooler Mounting Size on Side Panel ........................................................................................................................................................................................................
120 mm, 240 mm, 360 mm
AIO Cooler Mounting Size on Top Panel ........................................................................................................................................................................................................
120 mm, 140 mm, 240 mm, 280 mm, 360 mm
Liquid Cooling Mounting Size on Rear Panel ........................................................................................................................................................................................................
120 mm, 140 mm
Case Construction
Case material ........................................................................................................................................................................................................
ABS, steel
Front Panel ........................................................................................................................................................................................................
Glass
Side Panel Window Presence ........................................................................................................................................................................................................
yes
Aquarium ........................................................................................................................................................................................................
yes
Window Material ........................................................................................................................................................................................................
Internal 2.5" Bays ........................................................................................................................................................................................................
2, compatible with 1 HDD 3.5"
Internal 3.5" Bays ........................................................................................................................................................................................................
1, compatible with a 120 mm fan
Number of Expansion Slots ........................................................................................................................................................................................................
HDD Placement ........................................................................................................................................................................................................
Vertical GPU Mount ........................................................................................................................................................................................................
yes, The riser is purchased separately.
Maximum GPU Length ........................................................................................................................................................................................................
410 mm
Maximum cooler height ........................................................................................................................................................................................................
176 mm
Maximum PSU Length ........................................................................................................................................................................................................
210 mm

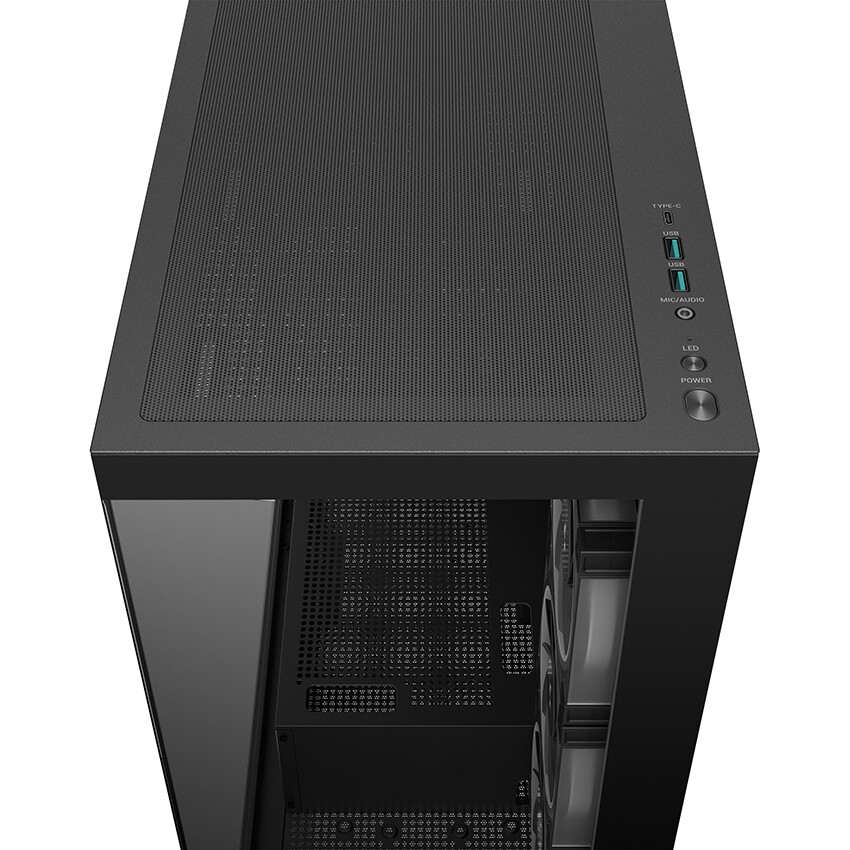

Front Panel Interfaces ........................................................................................................................................................................................................
2 x USB 3.0, USB Type-C, audio
USB port location ........................................................................................................................................................................................................
top panel
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
235 x 501 x 437 mm
Weight ........................................................................................................................................................................................................
8.8 kg
Warranty ........................................................................................................................................................................................................
12/24 months
