- Server motherboard ASUS PRO WS W880-ACE SE
Server motherboard ASUS PRO WS W880-ACE SE
ID: 750716
Product Summary
- Form Factor: ATX
- Number of Sockets: 1
- Socket: LGA 1851
- Chipset: Intel W880
- Number of Memory Slots: 4
- Memory Standard: DDR5
- Disk Controllers: 4 x SATA-III (6 Gb/s), SlimSAS
- Network Interface: 2 x 2.5 Gigabit Ethernet (2.5 Gbps)
Full Specifications
590,10 €590,10 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
PRO WS W880-ACE SE
Socket ........................................................................................................................................................................................................
Number of Sockets ........................................................................................................................................................................................................
Supported Processors ........................................................................................................................................................................................................
Core Ultra 9, Core Ultra 7, Core Ultra 5
Chipset ........................................................................................................................................................................................................
Network
Network Interface ........................................................................................................................................................................................................
2 x 2.5 Gigabit Ethernet (2.5 Gbps)
Additional
Form Factor ........................................................................................................................................................................................................
Additional Information ........................................................................................................................................................................................................
1 RJ-45 connector for remote control, with the possibility of connecting 4 x SATA-III via SlimSAS connector
Disk Controllers and Expansion Slots
Disk Controllers ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s), SlimSAS
RAID Support ........................................................................................................................................................................................................
0, 1, 5, 10
Expansion Slots ........................................................................................................................................................................................................
2 x PCI-E 5.0 x16, PCI-E 4.0 x16, 4 x M.2
M.2 Interface ........................................................................................................................................................................................................
PCI-E, SATA
M.2 Size ........................................................................................................................................................................................................
2280
Audio/Video
Audio ........................................................................................................................................................................................................
yes
Connectivity

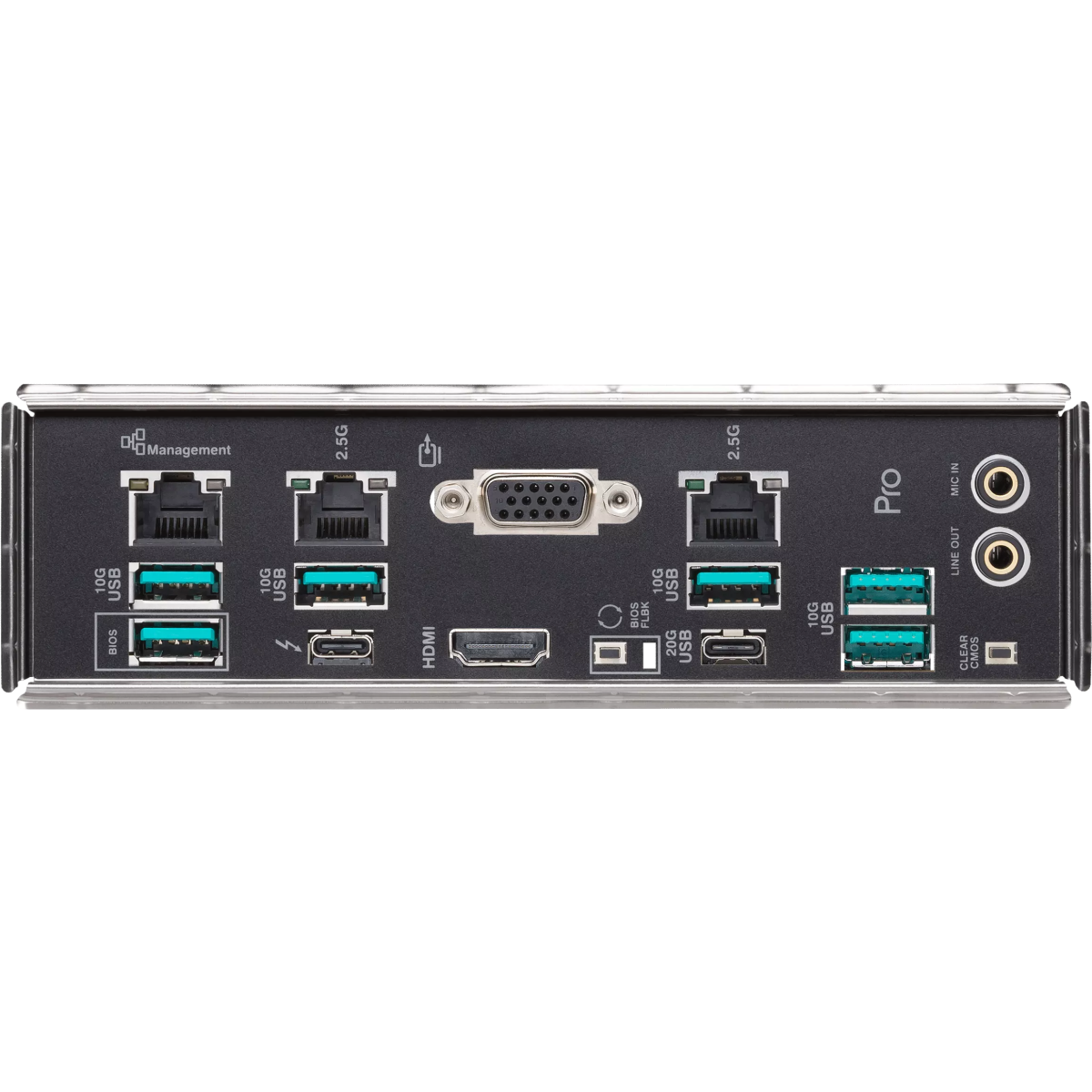

Rear Panel Connectors ........................................................................................................................................................................................................
6 x USB 3.2 Gen 2, USB Type-C, Thunderbolt 4/USB Type-C, VGA, HDMI, 3 x RJ-45
Main Power Connector ........................................................................................................................................................................................................
24-pin
Processor Power Connector ........................................................................................................................................................................................................
8-pin + 8-pin
Memory
Memory Standard ........................................................................................................................................................................................................
Supported Memory Type ........................................................................................................................................................................................................
UDIMM, ECC
Number of Memory Slots ........................................................................................................................................................................................................
Frequency Support ........................................................................................................................................................................................................
8200 MHz, 8600 MHz, 9066 MHz, Supporting frequencies: 8400 MHz
Maximum Memory Capacity ........................................................................................................................................................................................................
Special Feature
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
