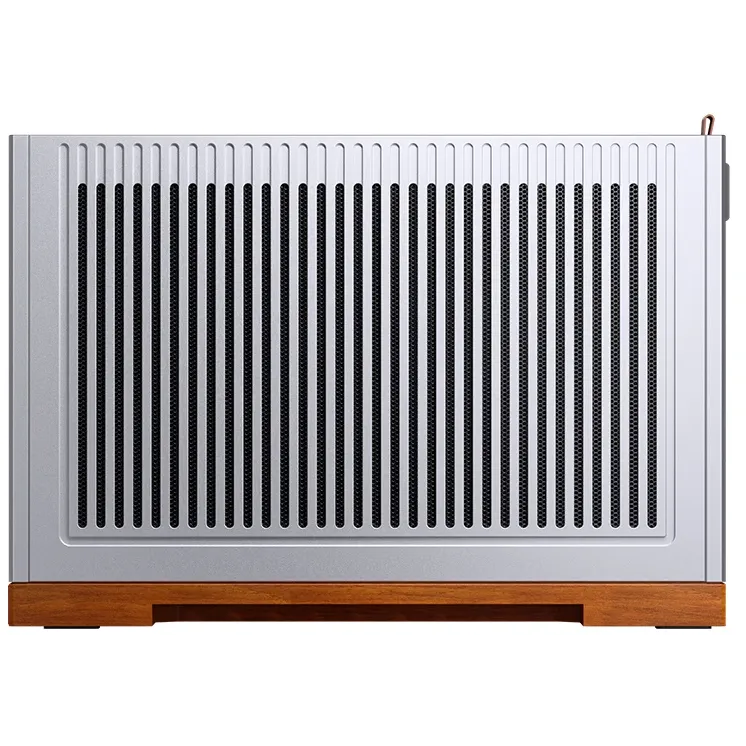

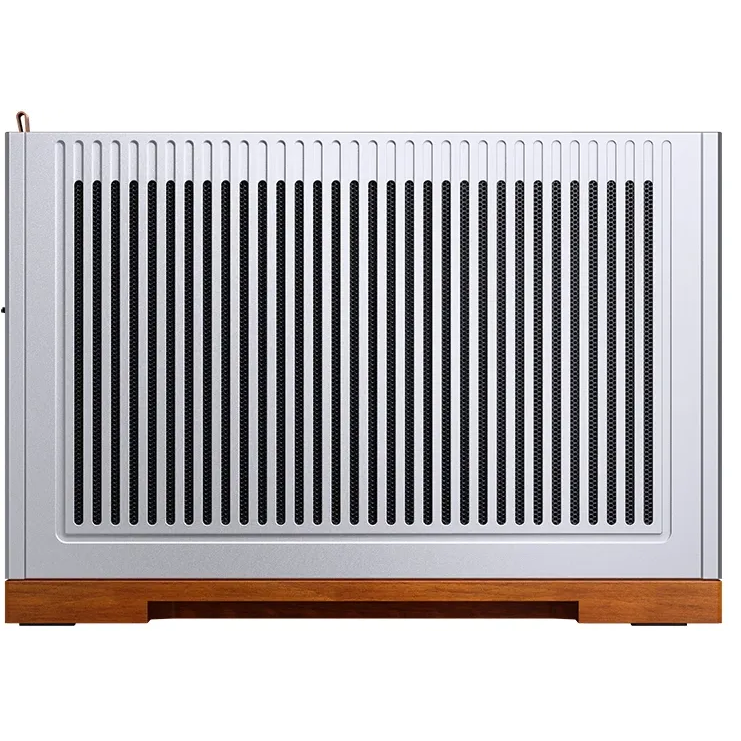

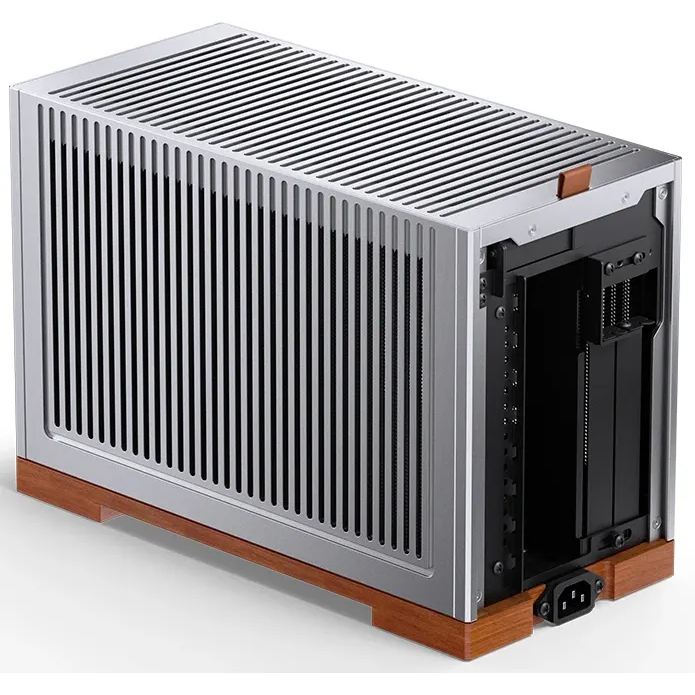

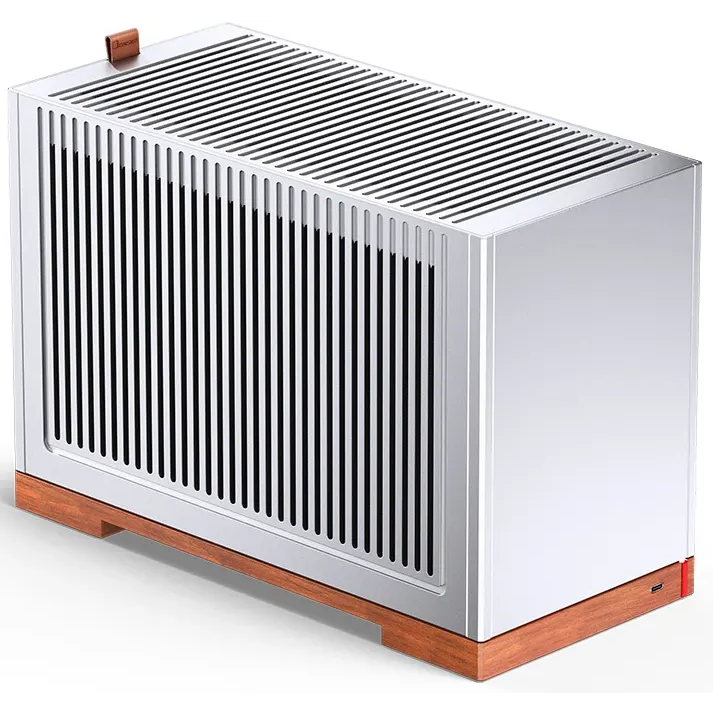

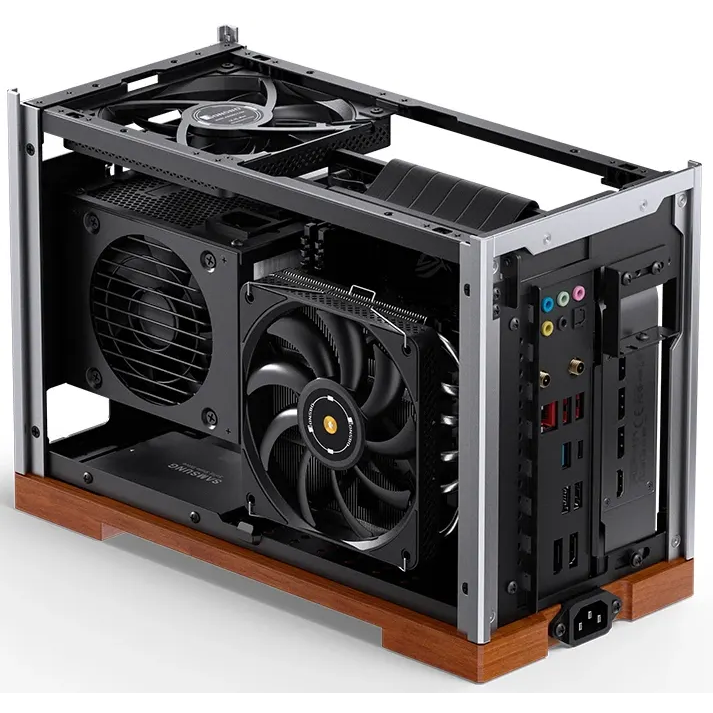

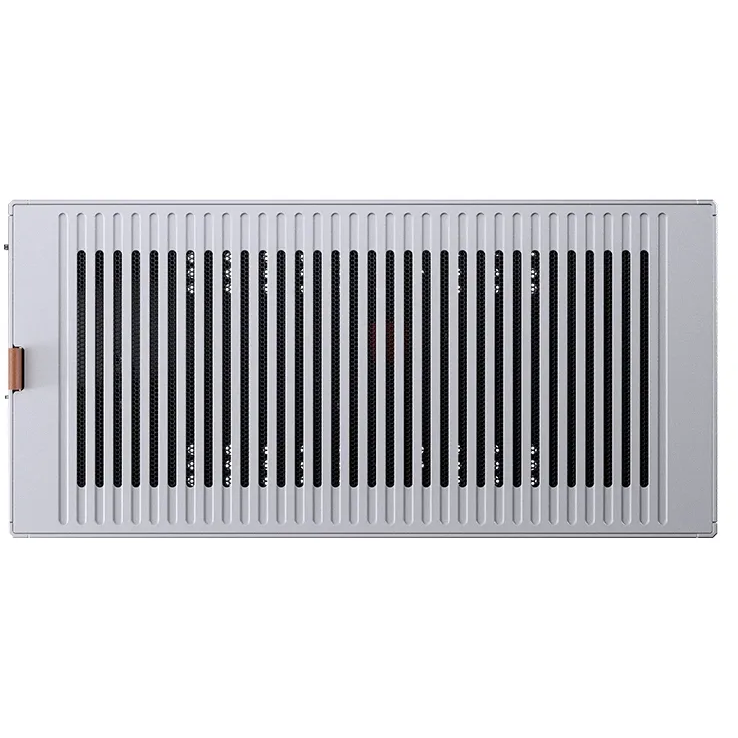

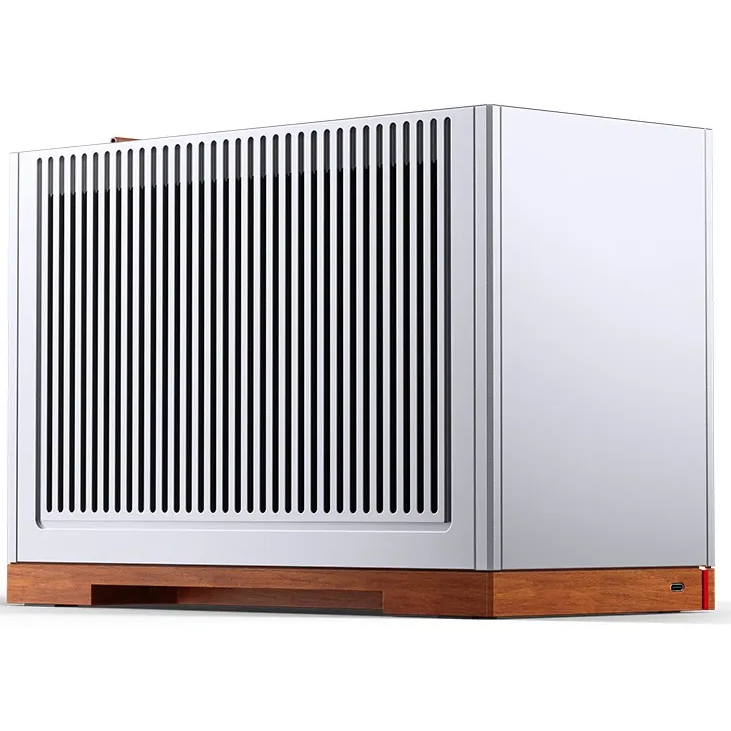

case Jonsbo T9 Silver
ID: 767422
Modification
Product Summary
- Case type: Micro-Tower
- Motherboard form factor: Mini-ITX
- Power supply: without PSU
- Maximum GPU Length: 310 mm
- Maximum cooler height: 78 mm
- Front Panel Interfaces: USB Type-C
Full Specifications
164,00 €164,00 €
In stockMain
Manufacturer ........................................................................................................................................................................................................
Manufacturer Code ........................................................................................................................................................................................................
T9 Silver
Case type ........................................................................................................................................................................................................
Motherboard form factor ........................................................................................................................................................................................................
Mini-ITX
Power supply ........................................................................................................................................................................................................
PSU form factor ........................................................................................................................................................................................................
SFX
Power supply location ........................................................................................................................................................................................................
Installed Fans
Included Fans ........................................................................................................................................................................................................
no
Additional fan mounts
Fan Mounting Locations ........................................................................................................................................................................................................
yes
Top Panel ........................................................................................................................................................................................................
120 mm
Features
Carrying handle ........................................................................................................................................................................................................
yes
Dust filter ........................................................................................................................................................................................................
2 x on the side panel, on the top panel
Colors used in design ........................................................................................................................................................................................................
Silver

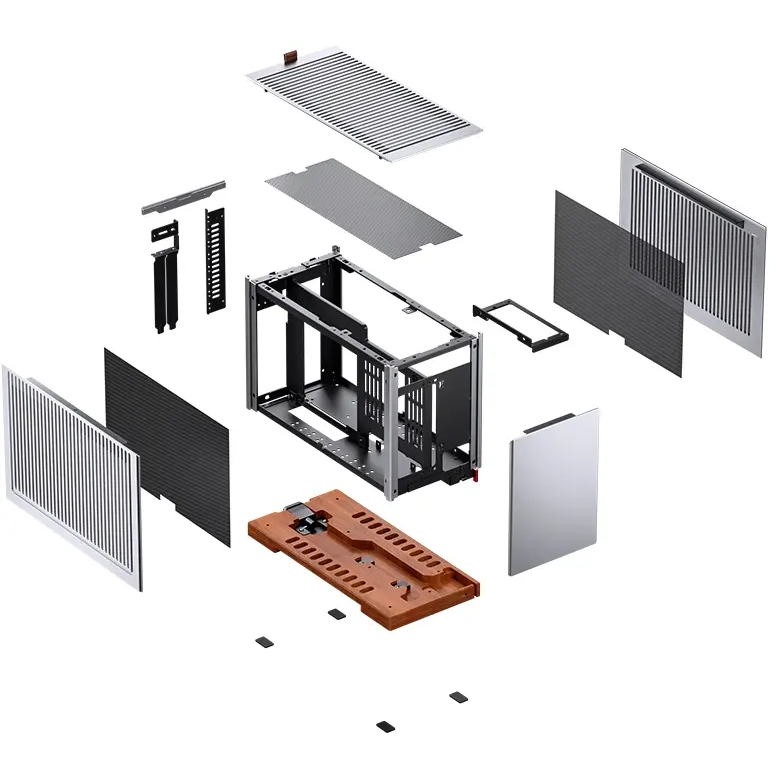

Case Construction
Case material ........................................................................................................................................................................................................

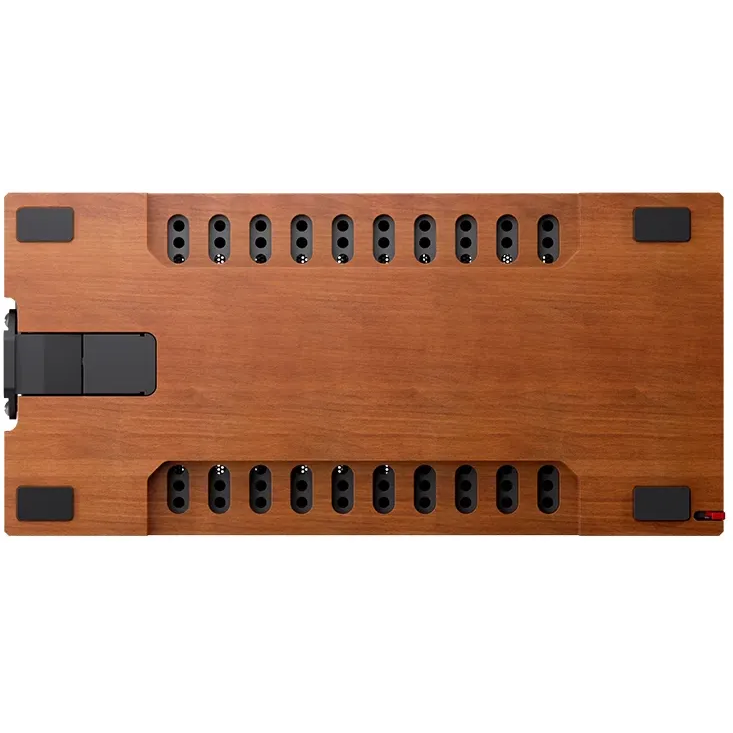

aluminum, steel, wood

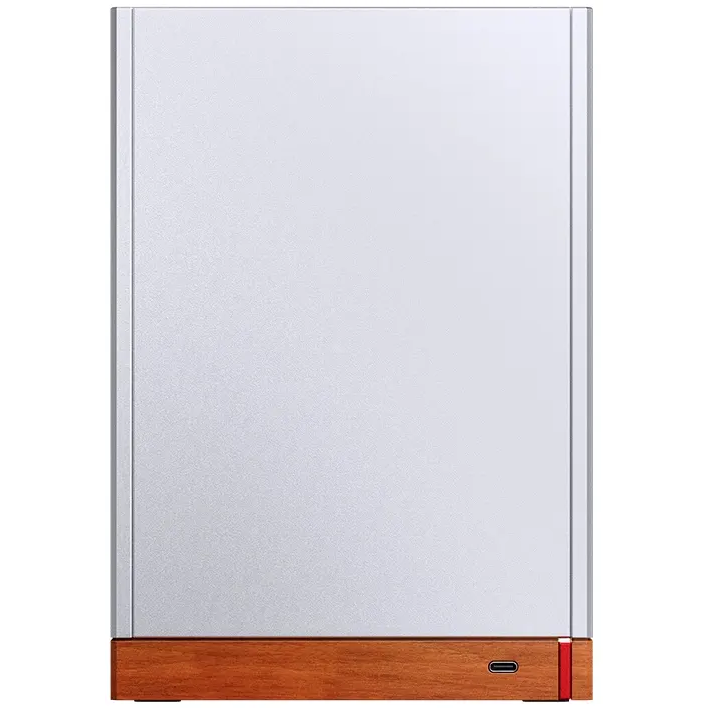

Front Panel ........................................................................................................................................................................................................
solid
Internal 2.5" Bays ........................................................................................................................................................................................................
Internal 3.5" Bays ........................................................................................................................................................................................................

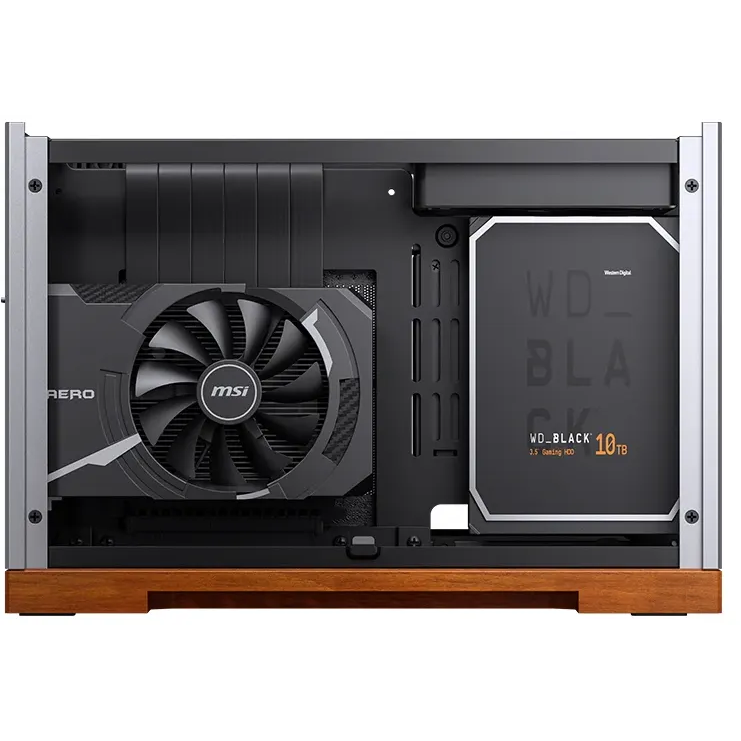

1, When in use, the length of the video card is limited to 202 mm.

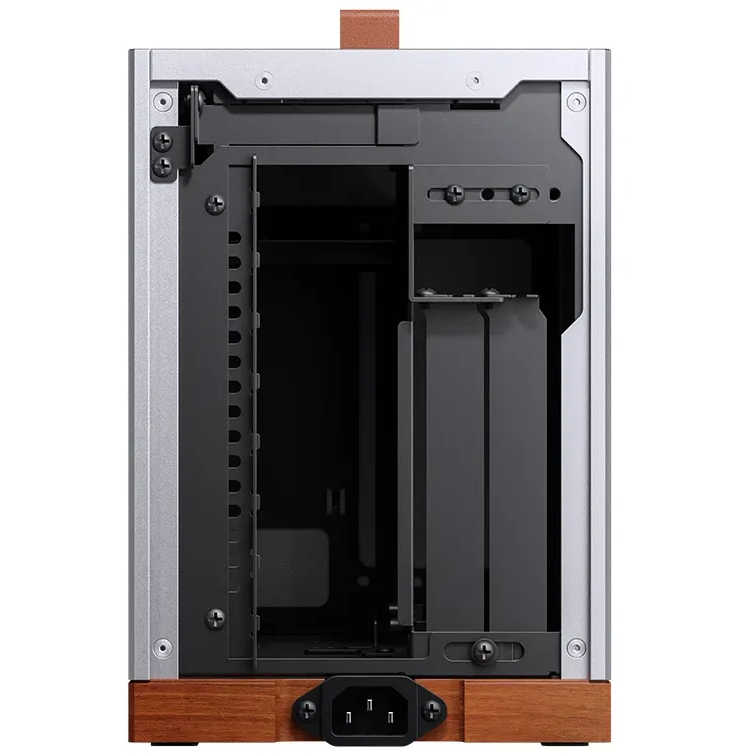

Number of Expansion Slots ........................................................................................................................................................................................................
HDD Placement ........................................................................................................................................................................................................

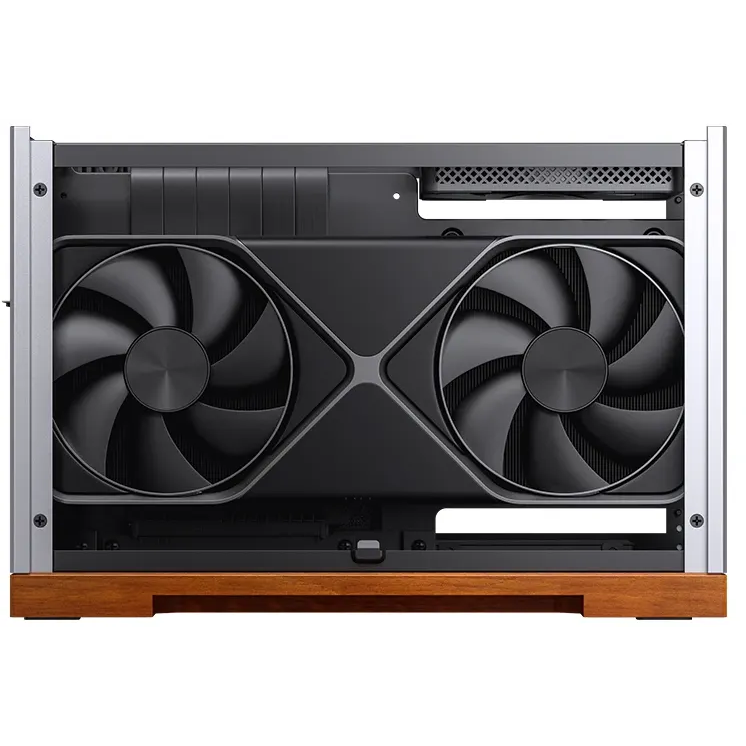

Vertical GPU Mount ........................................................................................................................................................................................................

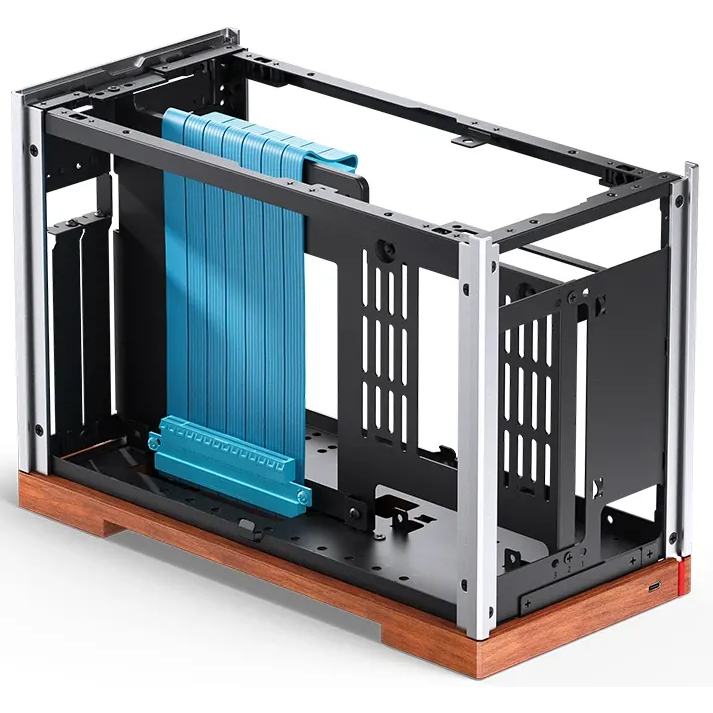

yes, Includes PCIe 5.0 riser
Maximum GPU Length ........................................................................................................................................................................................................
310 mm

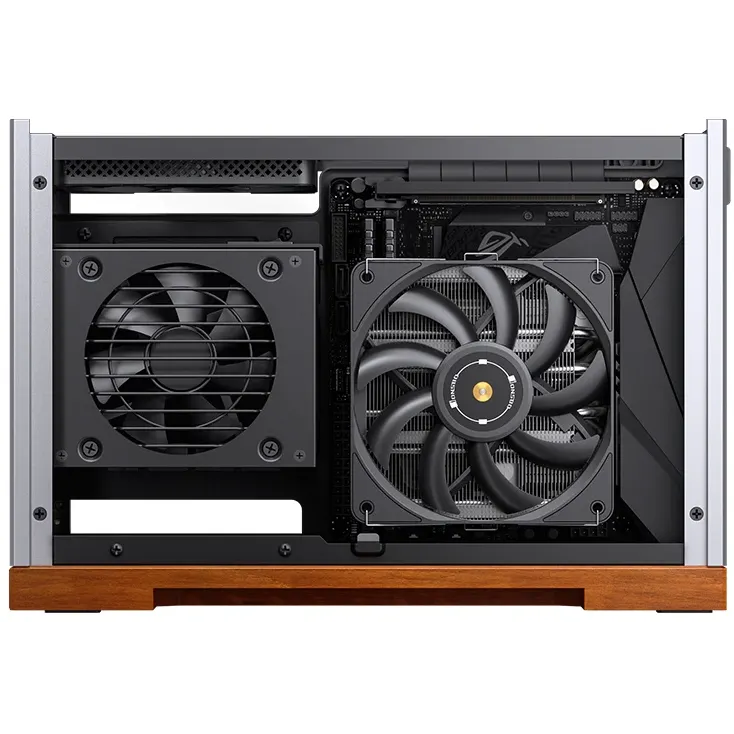

Maximum cooler height ........................................................................................................................................................................................................
78 mm, 2 slots for the video card; 68 mm, 2.5 slots for the video card; 58 mm, 3 slots for the video card
Maximum PSU Length ........................................................................................................................................................................................................
100 mm
Front Panel Interfaces ........................................................................................................................................................................................................
USB Type-C
USB port location ........................................................................................................................................................................................................
front panel (bottom)
Special Feature
Dimensions (WxHxD) ........................................................................................................................................................................................................
155 x 224 x 325 mm
Weight ........................................................................................................................................................................................................
3.85 kg
Warranty ........................................................................................................................................................................................................
12/24 months
Manufacturer's website ........................................................................................................................................................................................................
