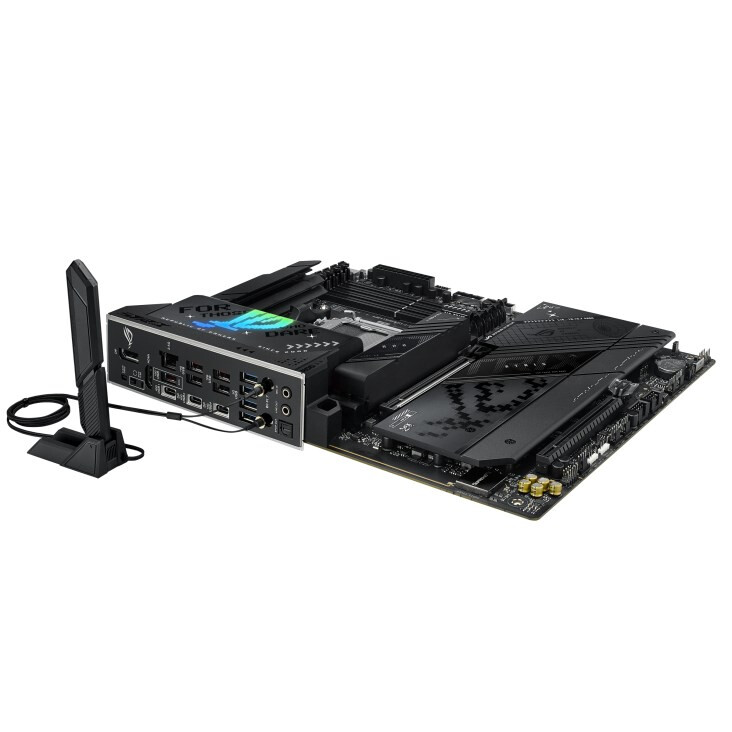

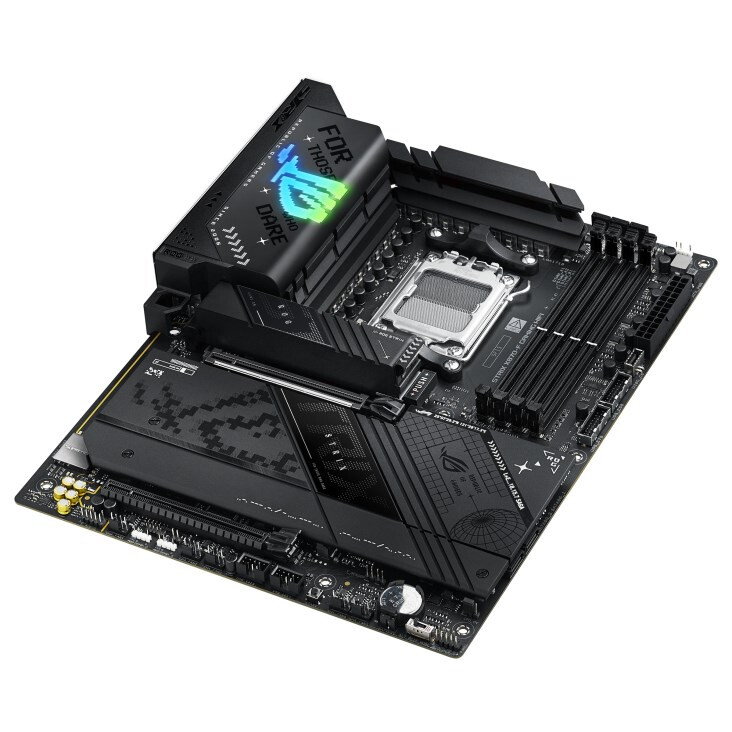

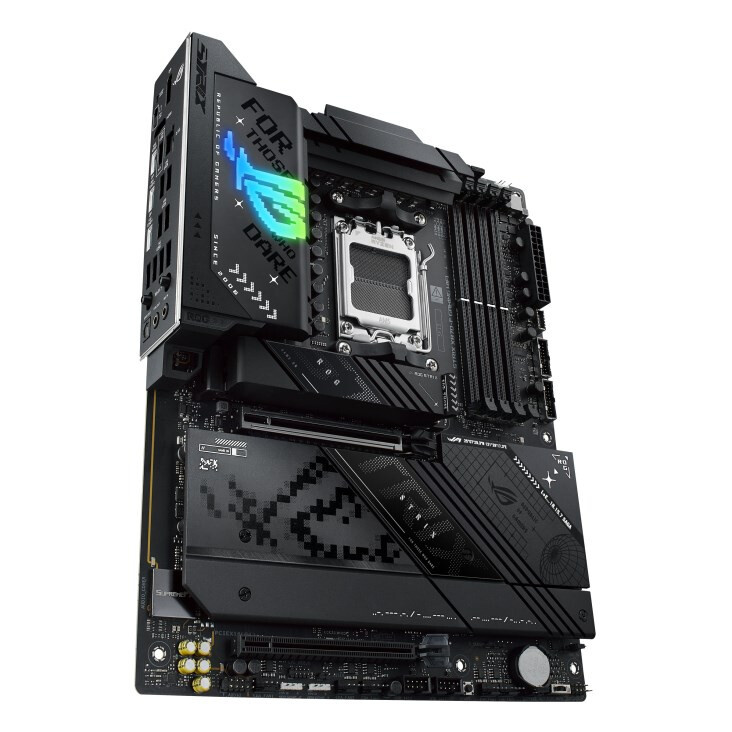

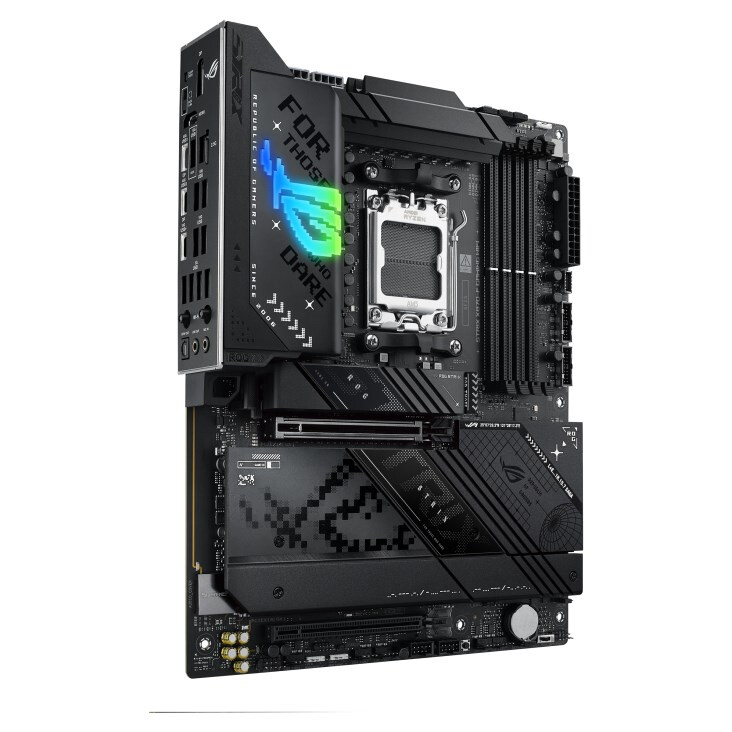

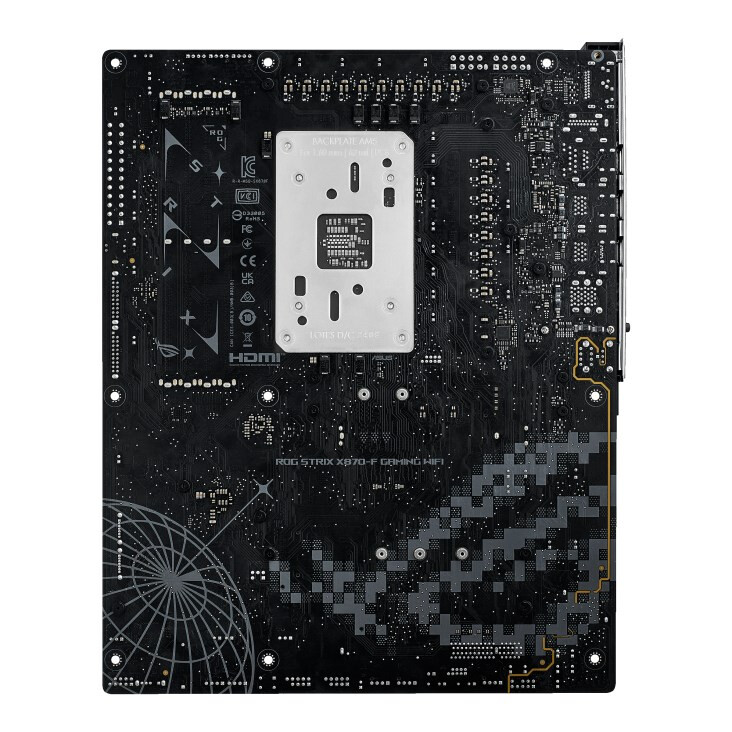

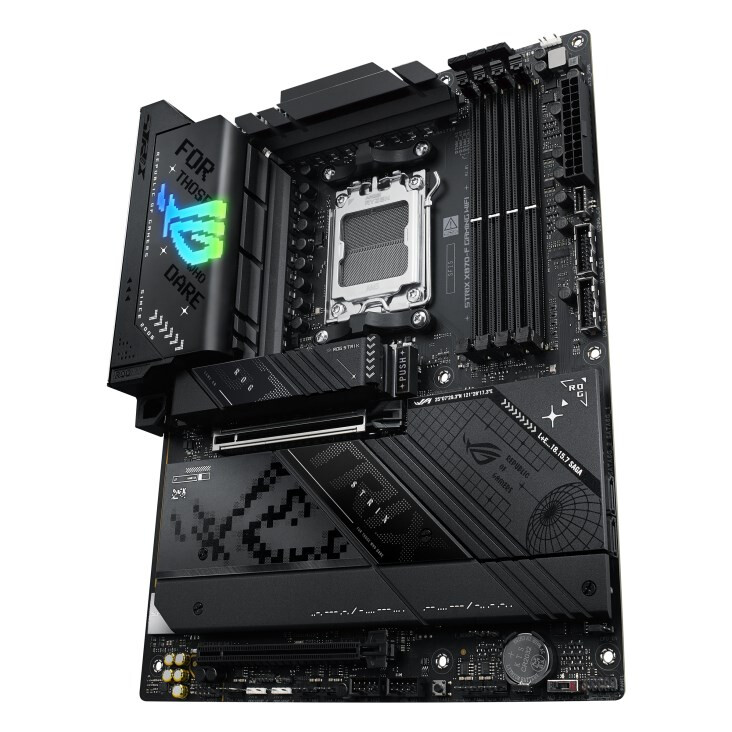

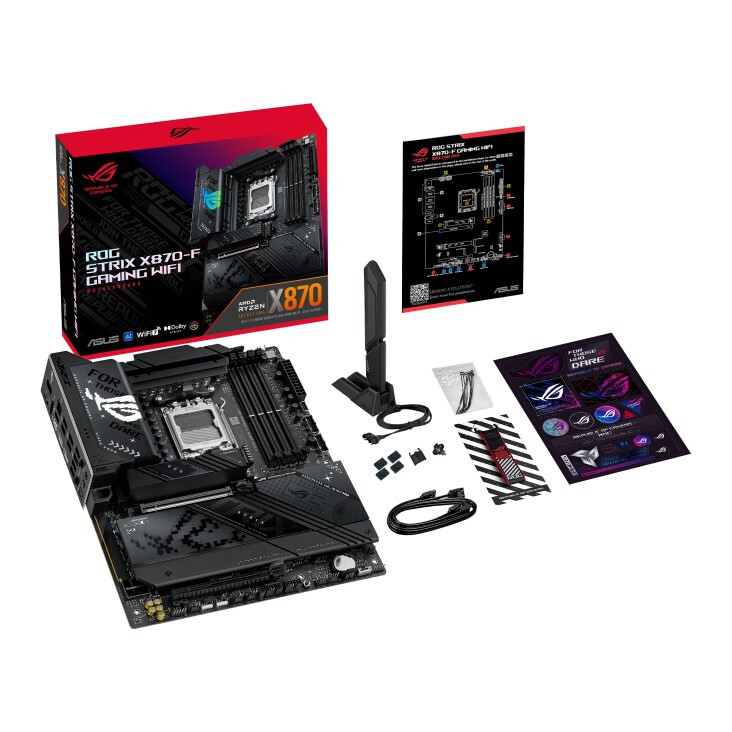

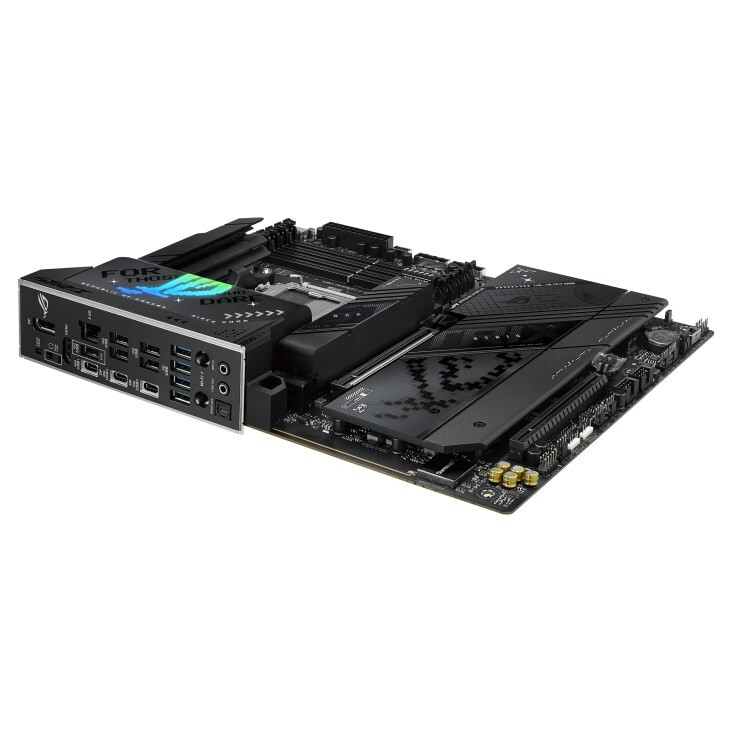

Pamatplate ASUS ROG STRIX X870-F GAMING WIFI (90MB1IV0-M0EAY0)
ID: 1756
Product Summary
- Socket: AM5
- Mikroshēmu kopa (Chipset): AMD X870
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR5
- Paplašināšanas sloti: PCI-E 5.0 x16, 2 x PCI-E 4.0 x16
- Tīkla saskarne: Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
90MB1IV0-M0EAY0
Socket ........................................................................................................................................................................................................
AM5
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD X870
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Ethernet (10/100 Mb/c), 2.5 Gigabit Ethernet (100/1000/2500 Mb/c), Wi-Fi, Bluetooth
Audio/Video
Skaņa ........................................................................................................................................................................................................
8 kanāli (7.1)
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR5
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Saskarnes

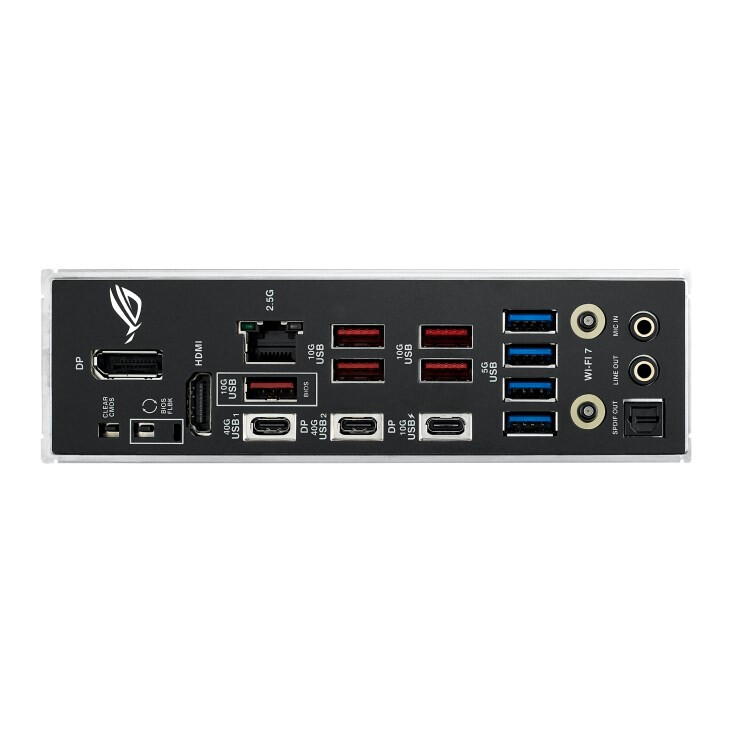

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 3.2 Gen1, 5 x USB 3.2 Gen2, USB 3.2 Gen2 Type-C, HDMI, DisplayPort, RJ-45, S/PDIF (optiskais)
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
2 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 5, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E 5.0 x16, 2 x PCI-E 4.0 x16
M.2. slotu veids ........................................................................................................................................................................................................
Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors**
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)****
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
Ražotāja mājās lapa ........................................................................................................................................................................................................
