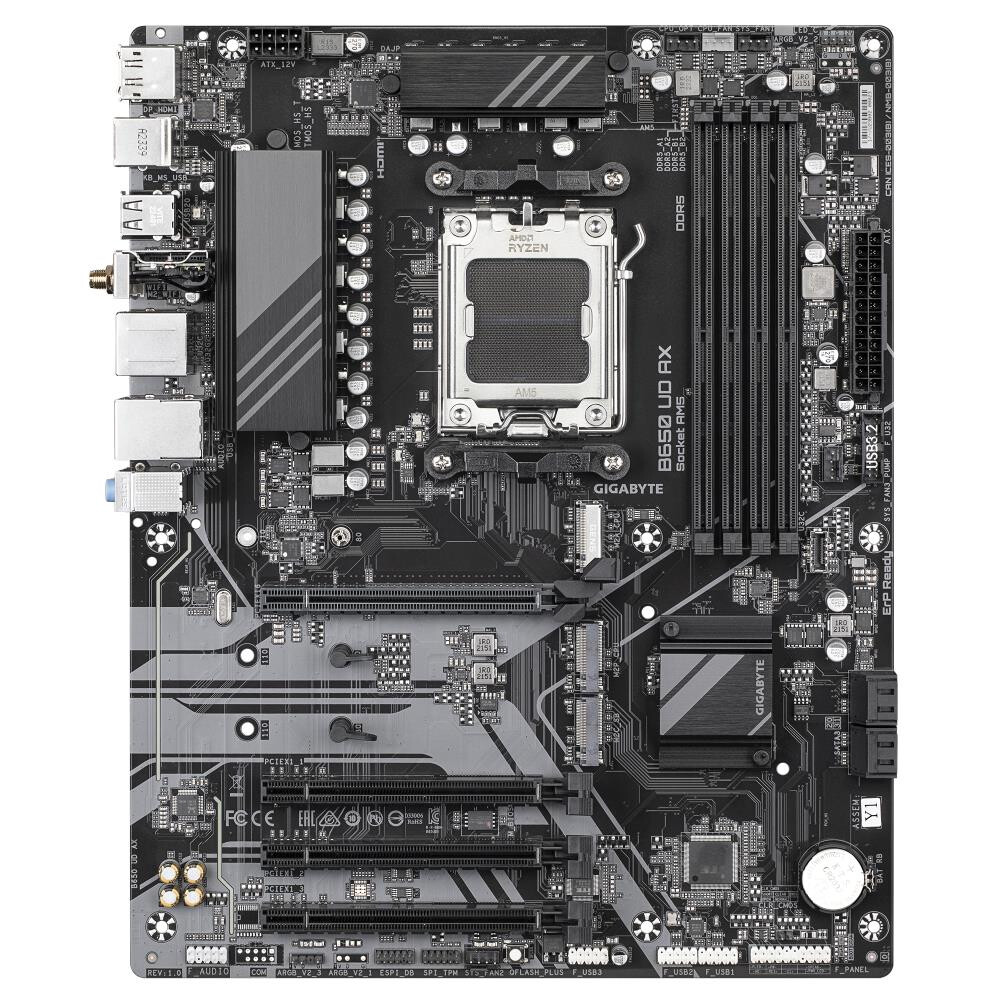

Pamatplate GIGABYTE B650 UD AX

ID: 1778

Product Summary

Socket: AM5
Mikroshēmu kopa (Chipset): AMD B650
Atmiņas slotu skaits: 4
Atmiņas veids: DDR5
Paplašināšanas sloti: 3 x PCI-E 3.0 x16, PCI-E x16, 3 x PCI-E M.2
Tīkla saskarne: Gigabit Ethernet (10/100/1000 Mb/c)

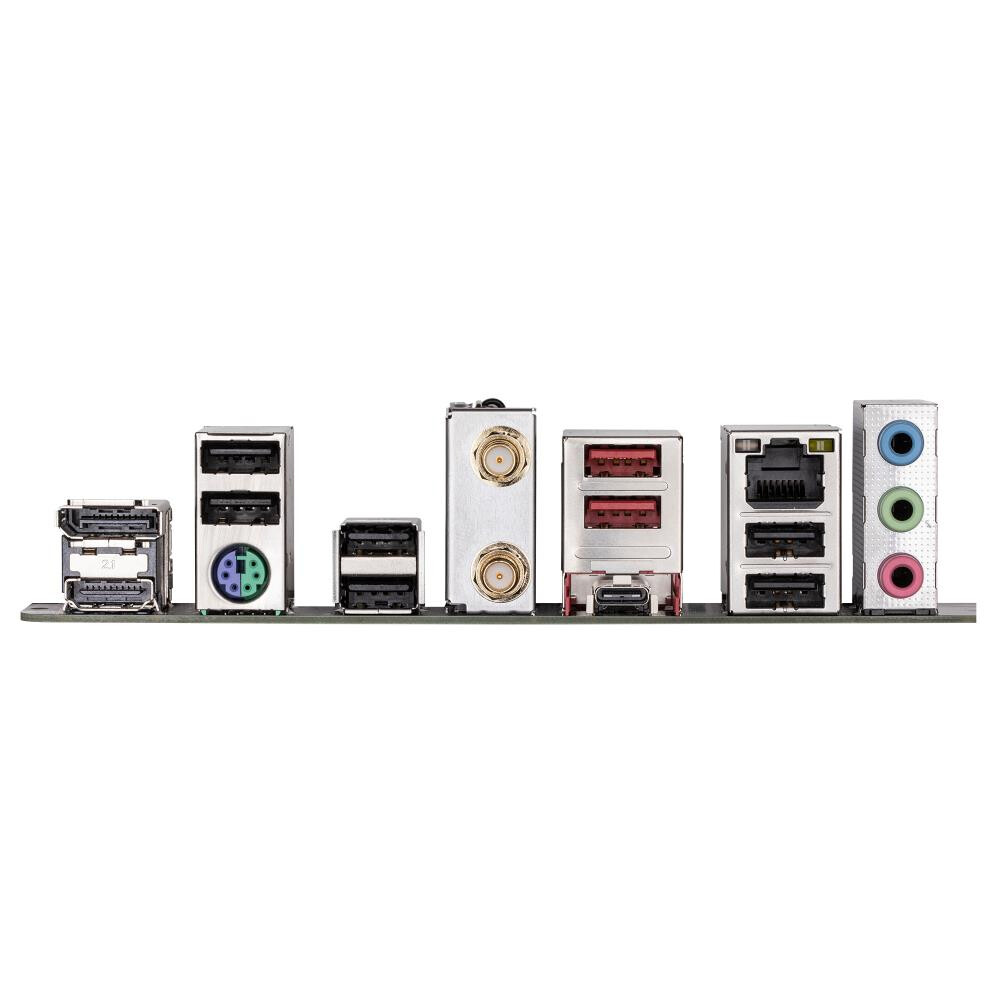

Ligzdas aizmugurējā panelī: PS/2, 6 x USB 2.0, USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45
Formfaktors: ATX

Full Specifications

124,¹⁰ €

In stock

Specifications

Pamata

Ražotājs ........................................................................................................................................................................................................

Gigabyte

Ražotāja kods ........................................................................................................................................................................................................

B650UDAX1.0Y1

Socket ........................................................................................................................................................................................................

AM5

Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................

AMD B650

Papildu

Formfaktors ........................................................................................................................................................................................................

ATX

Saskarnes

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................

PS/2, 6 x USB 2.0, USB 3.2 Gen1 Type-C, 2 x USB 3.2 Gen2, HDMI, DisplayPort, RJ-45

Audio/Video

Skaņa ........................................................................................................................................................................................................

8 kanāli (7.1)

Audio kontrolieris ........................................................................................................................................................................................................

Realtek ALC897

Atmiņa

Atmiņas veids ........................................................................................................................................................................................................

DDR5

Atmiņas slotu skaits ........................................................................................................................................................................................................

Tīkls

Tīkla saskarne ........................................................................................................................................................................................................

Gigabit Ethernet (10/100/1000 Mb/c)

Tīkla kontrolieris ........................................................................................................................................................................................................

Realtek RTL8111H

Diska kontrolieri

SATA kontrolieris ........................................................................................................................................................................................................

4 x SATA-III (6 Gb/s)

RAID atbalsts ........................................................................................................................................................................................................

0, 1, 10

Paplašināšanas sloti

Paplašināšanas sloti ........................................................................................................................................................................................................

3 x PCI-E 3.0 x16, PCI-E x16, 3 x PCI-E M.2

M.2. slotu veids ........................................................................................................................................................................................................

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2P_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x2 SSDs - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)

Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 2 x PCI Express x16 slots (PCIEX1_1/PCIEX1_2), integrated in the CPU, supporting PCIe 3.0 and running at x1 * The PCIEX1_1 and PCIEX1_2 slots become unavailable when an AMD Ryzen™ 8000 Series-Phoenix 2 processor is used. 1 x PCI Express x16 slot (PCIEX1_3), integrated in the Chipset, supporting PCIe 3.0 and running at x1

Papildus

Garantija ........................................................................................................................................................................................................

12/24 men.

Ražotāja mājās lapa ........................................................................................................................................................................................................

gigabyte.com
