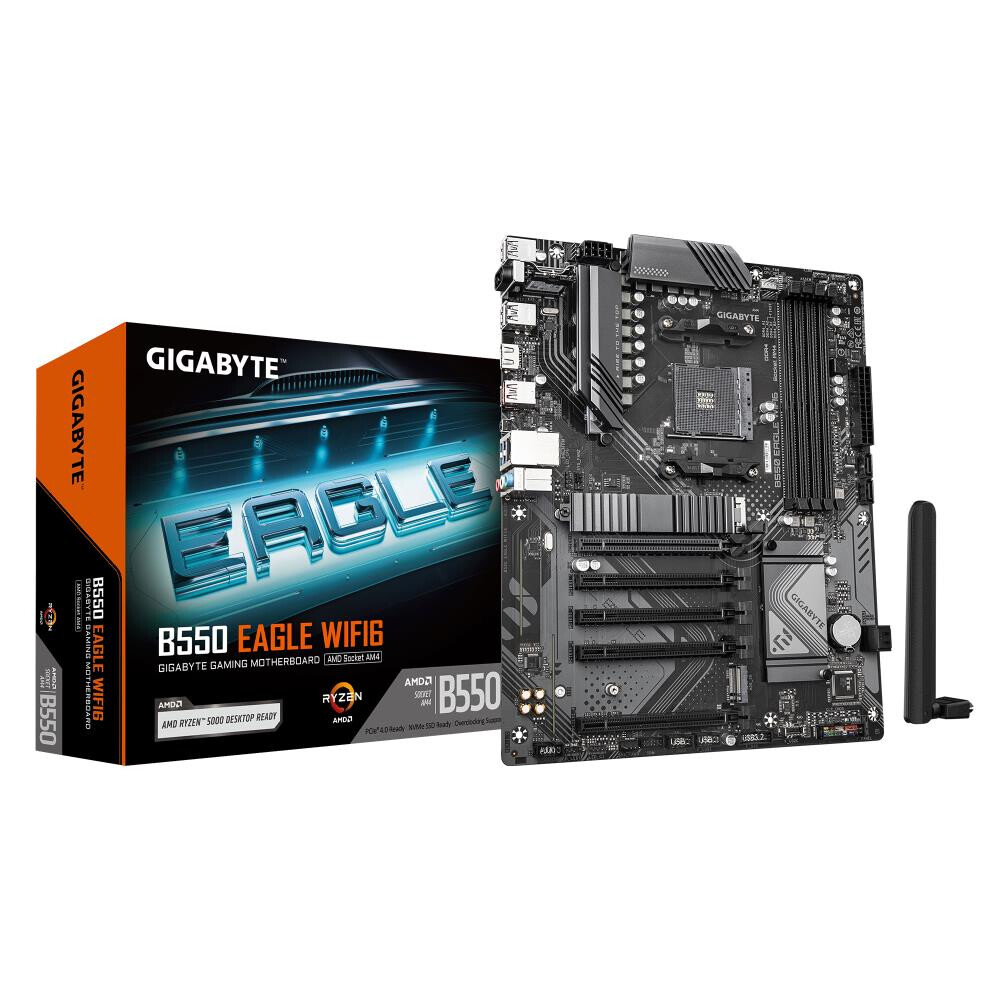

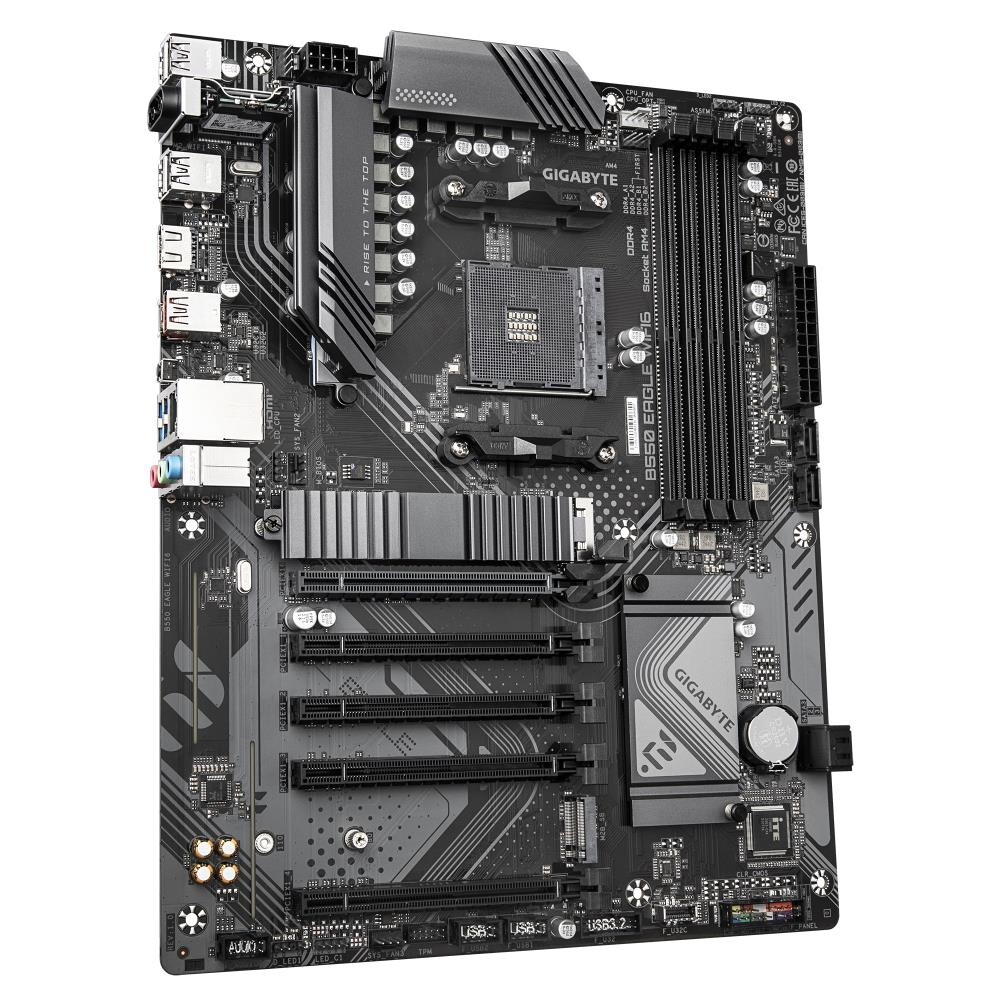

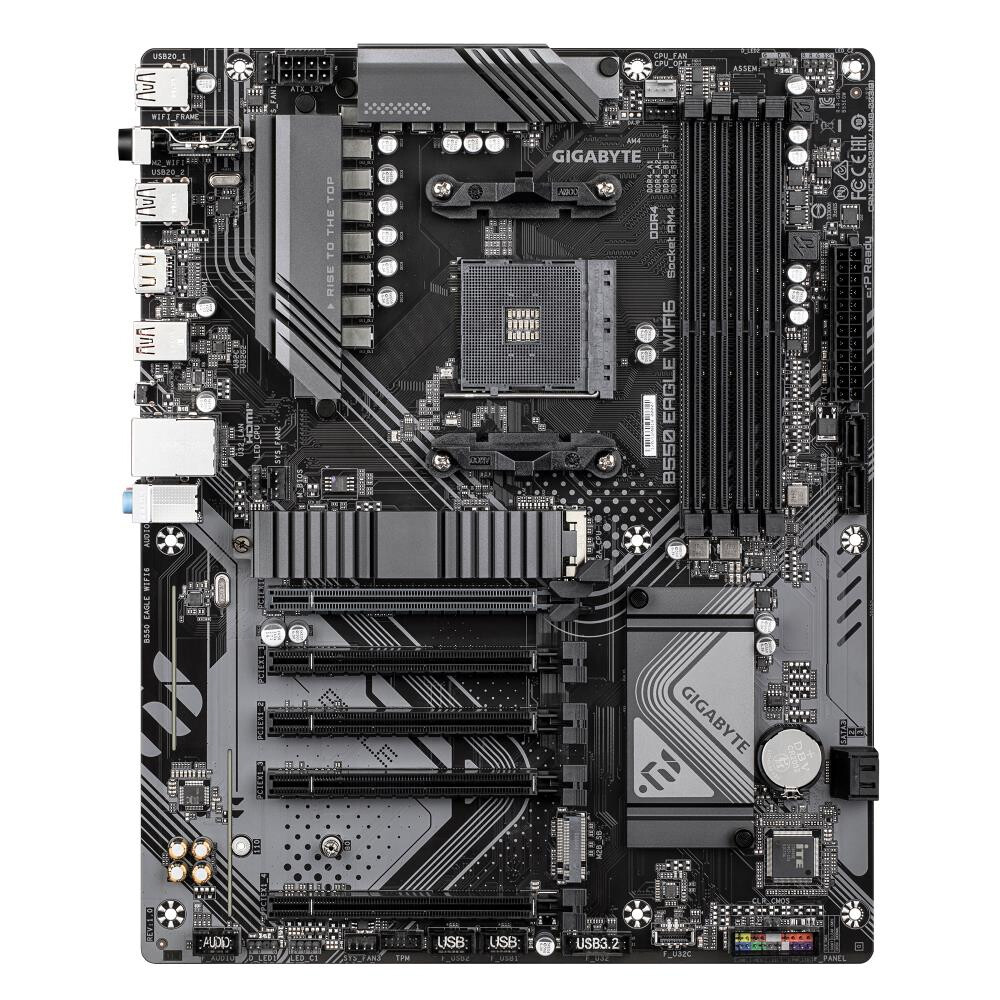

Pamatplate GIGABYTE B550 EAGLE WIFI6 (B550 EAGLE WIFI6 1.0)
ID: 1816
Product Summary
- Socket: AM4
- Mikroshēmu kopa (Chipset): AMD B550
- Atmiņas slotu skaits: 4
- Atmiņas veids: DDR4
- Paplašināšanas sloti: PCI-E x16, 4 x PCI-E x4, 2 x PCI-E M.2
- Tīkla saskarne: Wi-Fi, Bluetooth
- Ligzdas aizmugurējā panelī: 4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, RJ-45
- Formfaktors: ATX
Full Specifications
Pamata
Ražotājs ........................................................................................................................................................................................................
Ražotāja kods ........................................................................................................................................................................................................
B550 EAGLE WIFI6 1.0
Socket ........................................................................................................................................................................................................
AM4
Mikroshēmu kopa (Chipset) ........................................................................................................................................................................................................
AMD B550
Saskarnes

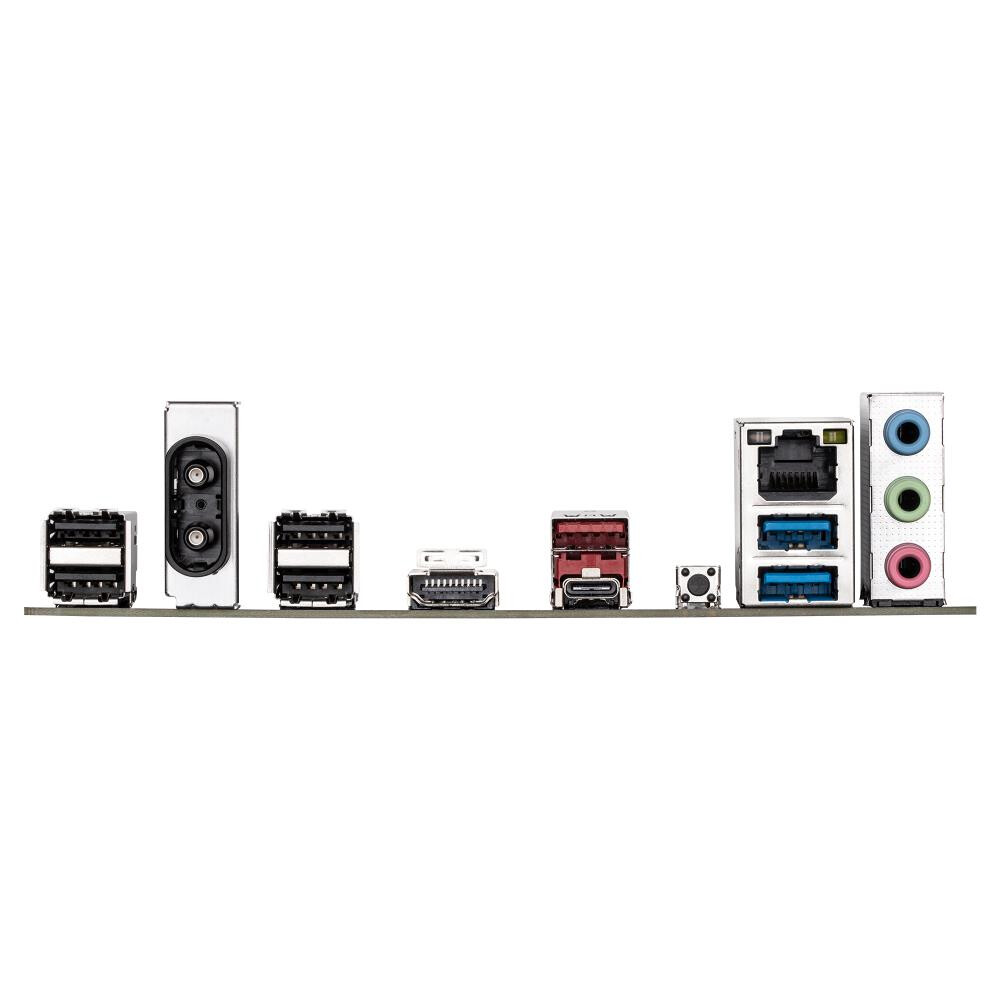

Ligzdas aizmugurējā panelī ........................................................................................................................................................................................................
4 x USB 2.0, 2 x USB 3.2 Gen1, USB 3.2 Gen1 Type-C, USB 3.2 Gen2, HDMI, RJ-45
Tīkls
Tīkla saskarne ........................................................................................................................................................................................................
Wi-Fi, Bluetooth
Atmiņa
Atmiņas veids ........................................................................................................................................................................................................
DDR4
Atmiņas slotu skaits ........................................................................................................................................................................................................
4
Papildu
Formfaktors ........................................................................................................................................................................................................
ATX
Diska kontrolieri
SATA kontrolieris ........................................................................................................................................................................................................
4 x SATA-III (6 Gb/s)
RAID atbalsts ........................................................................................................................................................................................................
0, 1, 10
Paplašināšanas sloti
Paplašināšanas sloti ........................................................................................................................................................................................................
PCI-E x16, 4 x PCI-E x4, 2 x PCI-E M.2
M.2. slotu veids ........................................................................................................................................................................................................
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
- AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs
- AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs
Atbalstītie PCI-Express režīmi ........................................................................................................................................................................................................
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0x16 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 4 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4)
Papildus
Garantija ........................................................................................................................................................................................................
12/24 men.
